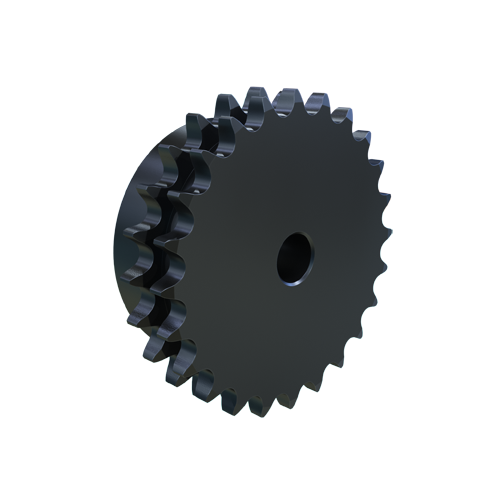

MARTIN SPROCKET D40B24H Roller Chain Sprocket, 40 Chain, Stock Bore, 24 Teeth, 3.831 Inch Pitch Dia., Steel
Item: AJ9BFZModel: D40B24H
7 In Stock
Ships within 2 days via
€136.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | 40-2 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 5/8" |
| Length Thru Bore | 1 5/8" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 5/8" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 24 |
| Outside Dia. | 4.098" |
| Pitch | 1/2" |
| Pitch Dia. | 3.8306" , 3.831" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 5/8" |
| Storage Dimension Length | 4.098" |
| Storage Dimension Width | 4.098" |
| Type | Double Strand Solid Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 4.14 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D40B11H | 1.775" | 11 | 1 1/2" | 1.438" | 1/2" to 3/4" | #40 | 2 1/8" | 2 1/8" | €100.07 | |
 |
D40B12H | 1.932" | 12 | 1 1/2" | 1.563" | 1/2" | 40-2 | 2 3/8" | 2 3/8" | €100.65 | |
 |
D40B13H | 2.089" | 13 | 1 1/2" | 1 1/2" | 1/2" | 40-2 | 2 9/16" | 2 9/16" | €101.80 | |
 |
D40B14H | 2.247" | 14 | 1 1/2" | 1.688" | 1/2" | 40-2 | 2 9/16" | 2 9/16" | €103.87 | |
 |
D40B15H | 2.405" | 15 | 1 1/2" | 1.813" | 1/2" | 40-2 | 3" | 3" | €103.87 | |
 |
D40B16H | 2.563" | 16 | 1 1/2" | 1.969" | 5/8" | 40-2 | 2.814" | 2.814" | €104.45 | |
 |
D40B17H | 2.721" | 17 | 1 1/2" | 2 1/8" | 5/8" | 40-2 | 2.975" | 2.975" | €107.63 |
