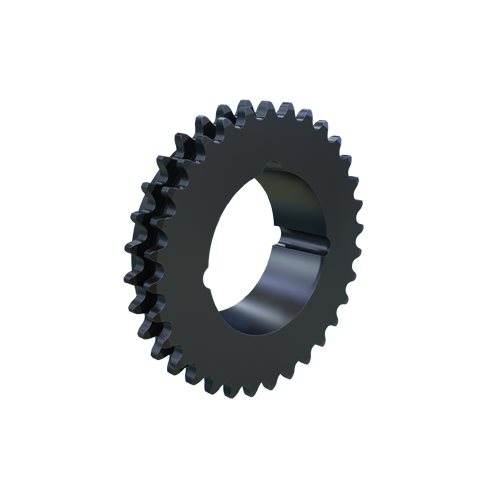

MARTIN SPROCKET D35BTB32 Sprocket, Taper, 35 Chain, 32 Teeth, 3.826 Inch Pitch Dia., 4.032 Inch O.D., Steel
Item: AZ9TFMModel: D35BTB32
7 In Stock
4.032"
Ships within 2 days via
€136.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 1610 |
| Bushing Type | 1210 Taper Lock |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | 35-2 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Dia. | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 5/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 32 |
| Outside Dia. | 4.032" |
| Pitch | 3/8" |
| Pitch Dia. | 3.8259" , 3.826" |
| Single Strand Tooth Thickness | 0.163" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 4.032" |
| Storage Dimension Width | 4.032" |
| Type | Double Strand TB Bushed Solid Type B |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.24 |
| Ship width (cm) | 10.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D35BTB20H | 2.397" | 20 | 7/8" | 1.938" | 35-2 | 2.593" | 2.593" | 22/25" | €114.52 | |
 |
D35BTB112 | 13.371" | 112 | 1" | 3 5/8" | #35 | 13.591" | 13.591" | 1" | €307.83 | |
 |
D35BTB54 | 6.449" | 54 | 1" | 3 7/8" | 35-2 | 6.664" | 6.664" | 1" | €194.17 | |
 |
D35BTB21H | 2.516" | 21 | 7/8" | 2.062" | #35 | 2.713" | 2.713" | 22/25" | €118.42 | |
 |
D35BTB22H | 2.635" | 22 | 7/8" | 2.188" | #35 | 2.833" | 2.833" | 22/25" | €122.28 | |
 |
D35BTB26 | 3.111" | 26 | 1" | 2 5/8" | #35 | 3.313" | 3.313" | 1" | €127.73 | |
 |
D35BTB30 | 3.588" | 30 | 1" | 3 1/8" | #35 | 3.793" | 3.793" | 1" | €125.06 |
