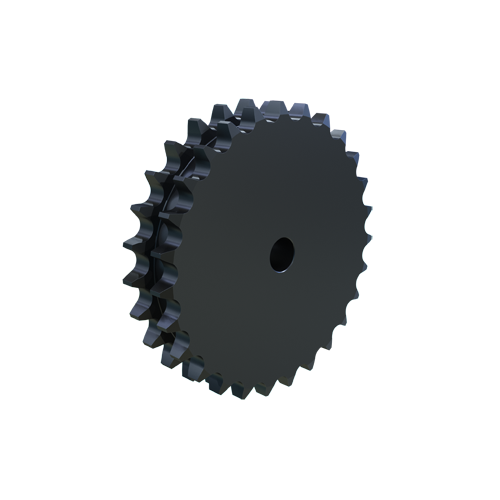

MARTIN SPROCKET D24B27 Sprocket, 24B-2 Chain, 27 Teeth, 328.185 mm Pitch Dia., 350.410 mm O.D., Steel
350.410 mm
Get it by Friday, Aug 21
€2,489.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 40 mm to 110 mm |
| Chain Size | #24B-2 |
| Hub Dia. | 159.995 mm |
| Length Through Bore | 102.006 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 27 |
| Outside Dia. | 350.41 mm |
| Pitch | 38.1 mm |
| Pitch Dia. | 328.185 mm |
| Type | Type B Double Strand Stock Bore Welded |
Shipping Info:
| Ship weight (kg) | 45.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 35.05 |
| Ship width (cm) | 35.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Material | Pitch | Chain Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D24B21 | 255.632 mm | 21 | 100 mm | 159.995 mm | 40 mm to 112 mm | High Carbon Steel | 38.1 mm | #24B-2 | €1,870.12 | |
 |
D24B11 | 135.235 mm | 11 | 100 mm | 89.992 mm | 32 mm to 63 mm | High Carbon Steel | 38.1 mm | #24B-2 | €1,111.56 | |
 |
D24B12 | 147.207 mm | 12 | 100 mm | 102.006 mm | 32 mm to 72 mm | High Carbon Steel | 38.1 mm | #24B-2 | €1,095.43 | |
 |
D24B16 | 195.294 mm | 16 | 100 mm | 150.012 mm | 32 mm to 106 mm | High Carbon Steel | 38.1 mm | #24B-2 | €1,362.79 | |
|
D24B18 | 219.409 mm | 18 | 100 mm | 159.995 mm | 40 mm to 112 mm | High Carbon Steel | 38.1 mm | #24B-2 | €1,575.99 | |
 |
D24B20 | 243.552 mm | 20 | 100 mm | 159.995 mm | 40 mm to 113 mm | High Carbon Steel | 38.1 mm | #24B-2 | €1,763.60 | |
 |
D24B26 | 316.086 mm | 26 | 102.006 mm | 159.995 mm | 40 mm to 112 mm | High Carbon Steel | 38.1 mm | #24B-2 | €2,431.63 |
