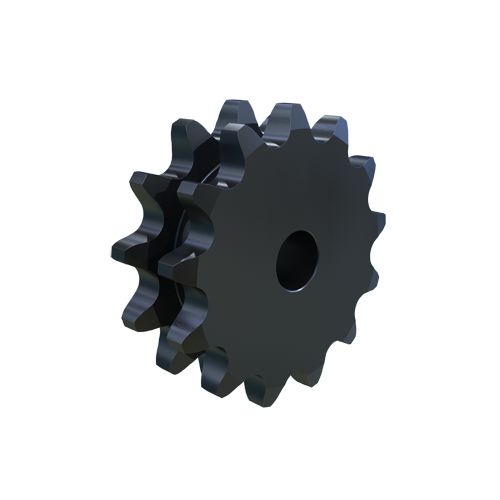

MARTIN SPROCKET D140B13 Sprocket, 140 Chain, 13 Teeth, 7.313 Inch Pitch Dia., 8.150 Inch O.D., Steel
Get it by Monday, Aug 24
€821.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 5/8" to 3 5/16" |
| Bore Type | Finished Bore |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | #140 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 5/8" |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | B |
| Hub Dia. | 5" |
| Hub Outside Dia. | 5" |
| Individually Packaged | No |
| Length Through Bore | 3 3/4" |
| Length Thru Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 1 5/8" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 13 |
| Outside Dia. | 8.15" |
| Pitch | 1 3/4" |
| Pitch Dia. | 7 5/16" , 7.313" |
| Single Strand Tooth Thickness | 2.818" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 8.15" |
| Storage Dimension Width | 8.15" |
| Type | Type B Double Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 13.04 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 20.7 |
| Ship width (cm) | 20.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

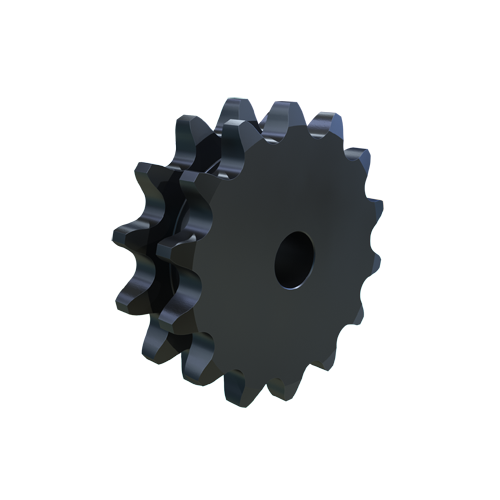

D140B14 | 7.864" | 14 | 3 3/4" | 5 1/2" | 1 5/8" | 140-2 | 8.717" | 8.717" | €792.96 | |
 |
D140B15 | 8.417" | 15 | 3 3/4" | 6 1/2" | 1 5/8" | 140-2 | 9.283" | 9.283" | €954.29 | |
|
D140B16 | 8.97" | 16 | 4" | 7" | 1 5/8" to 5 1/4" | #140 | 9.848" | 9.848" | €1,019.36 | |
 |

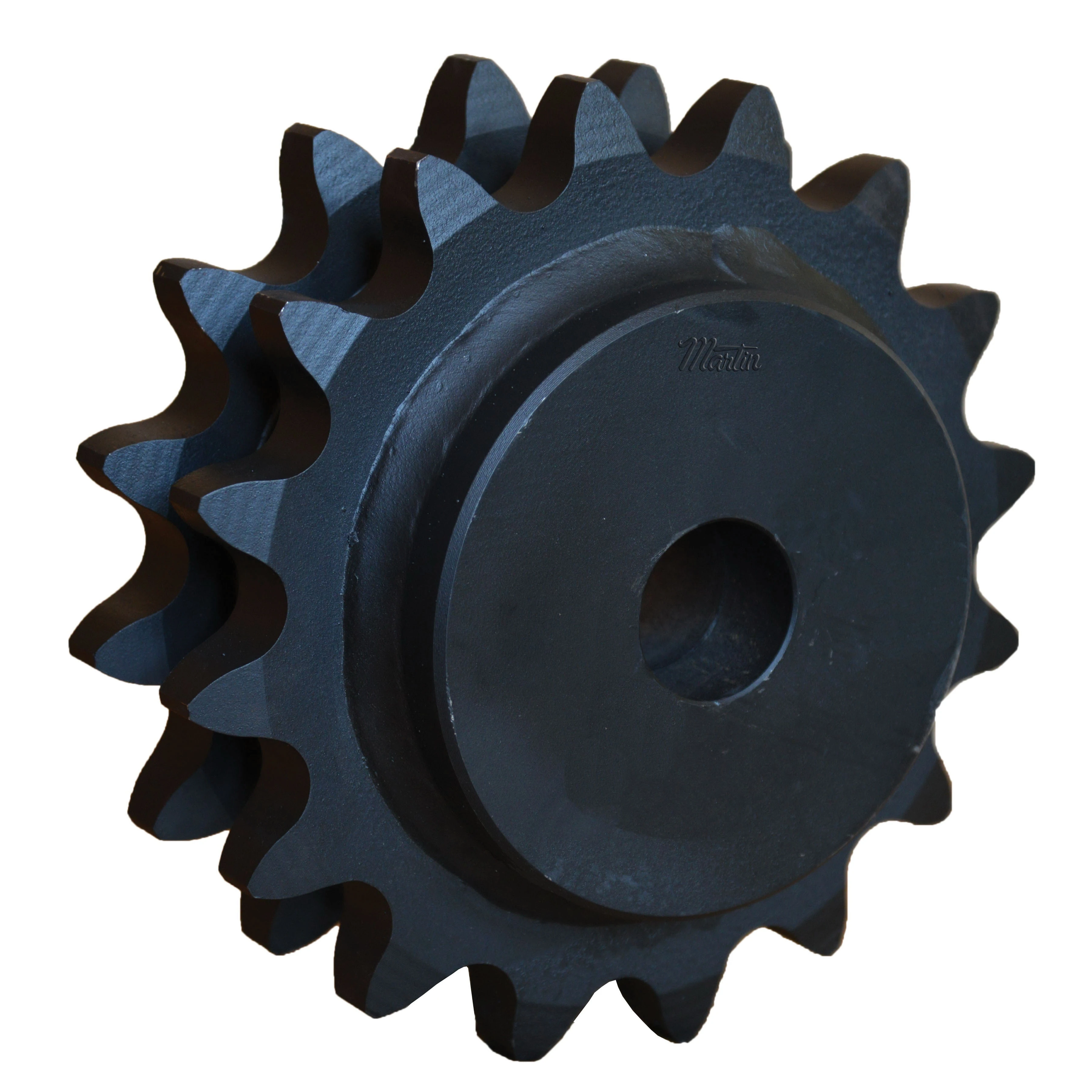

D140B17 | 9.524" | 17 | 4" | 7" | 1 5/8" to 5 1/4" | #140 | 10.412" | 10.412" | €1,130.03 | |
|
D140B18 | 10.078" | 18 | 4" | 7" | 1 3/4" to 5 1/4" | #140 | 10.975" | 10.975" | €1,187.51 | |
 |
D140B19 | 10.6322" | 19 | 4" | 7" | 1 3/4" to 5 1/4" | #140 | 11.537" | 11.537" | €1,252.02 | |
|
D140B20 | 11.1868" | 20 | 4" | 7" | 1 3/4" to 5 1/4" | #140 | 12.099" | 12.099" | €1,363.73 |
