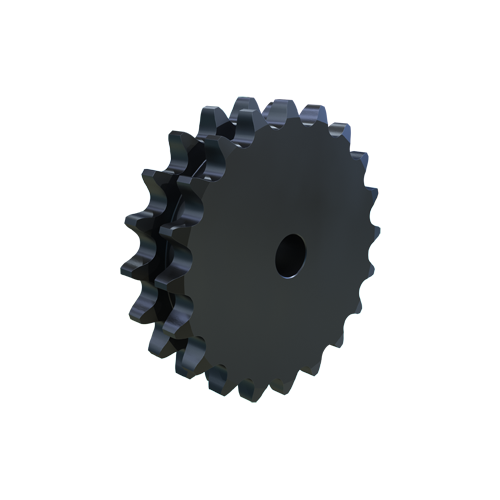

MARTIN SPROCKET D120B20 Roller Chain Sprocket, 120 Chain, Stock Bore, 20 Teeth, 9.589 Inch Pitch Dia., Steel
Get it by Tuesday, Aug 25
€1,130.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" to 3 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Chain Size | #120 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Dia. | 5 1/2" |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Length Through Bore | 3 3/4" |
| Length Thru Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 3 1/2" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 20 |
| Outside Dia. | 10.371" |
| Pitch | 1 1/2" |
| Pitch Dia. | 9.5887" , 9.589" |
| Single Strand Tooth Thickness | 0.894" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 10.371" |
| Storage Dimension Width | 10.371" |
| Type | Type B Double Strand Welded Reboreable |
Shipping Info:
| Ship weight (kg) | 22.59 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 26.34 |
| Ship width (cm) | 26.34 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D120B11 | 5.3242" | 11 | 3 3/4" | 3.563" | 1 1/2" | 120-2 | 6.009" | 6.009" | €696.00 | |
 |
D120B12 | 5.796" | 12 | 3 3/4" | 4.063" | 1 1/2" to 2 3/4" | #120 | 6.498" | 6.498" | €731.54 | |
 |
D120B13 | 6.2679" | 13 | 3 3/4" | 4 1/2" | 1 1/2" | 120-2 | 6.986" | 6.986" | €785.06 | |
 |
D120B14 | 6.741" | 14 | 3 3/4" | 5" | 1 1/2" to 3 5/16" | #120 | 7.472" | 7.472" | €760.76 | |
 |
D120B15 | 7.215" | 15 | 3 3/4" | 5 1/4" | 1 1/2" | 120-2 | 7.957" | 7.957" | €792.96 | |
|
D120B16 | 7.689" | 16 | 3 3/4" | 5 1/4" | 1 1/2" to 3 1/2" | #120 | 8.441" | 8.441" | €825.19 | |
 |
D120B17 | 8.163" | 17 | 3 3/4" | 5 1/4" | 1 1/2" | 120-2 | 8.924" | 8.924" | €873.73 |
