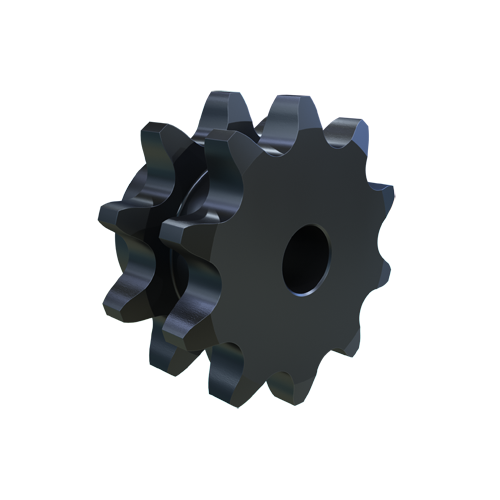

MARTIN SPROCKET D100B10 Sprocket, 100 Chain, 10 Teeth, 4.045 Inch Pitch Dia., 4.597 Inch O.D., Steel
Item: BA4GNDModel: D100B10
7 In Stock
Ships within 2 days via
€312.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Diameter | 2 3/4" |
| Hub Outside Dia. | 2 3/4" |
| Individually Packaged | No |
| Length Through Bore | 2 7/8" |
| Length Thru Bore | 2 7/8" |
| Material | Steel |
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 10 |
| Outside Dia. | 4.597" |
| Pitch | 1 1/4" |
| Pitch Dia. | 4.0451" |
| Pitch Diameter | 4.045" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 2 7/8" |
| Storage Dimension Length | 4.597" |
| Storage Dimension Width | 4.597" |
Shipping Info:
| Ship weight (kg) | 2.76 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D100B12 | 12 | 4.8296" | 5.415" | 2 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €372.61 | |
 |
D100B13 | 13 | 5.2232" | 5.821" | 2 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €349.86 | |
 |
D100B14 | 14 | 5.6174" | 6.227" | 2 7/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €382.15 | |
|
D100B15 | 15 | 6.0122" | 6.631" | 3 1/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €419.55 | |
 |
D100B16 | 16 | 6.4073" | 7.034" | 3 1/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €451.85 | |
 |
D100B17 | 17 | 6.8027" | 7.437" | 3 1/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €485.76 | |
 |
D100B18 | 18 | 7.1985" | 7.839" | 3 1/8" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €596.29 |
