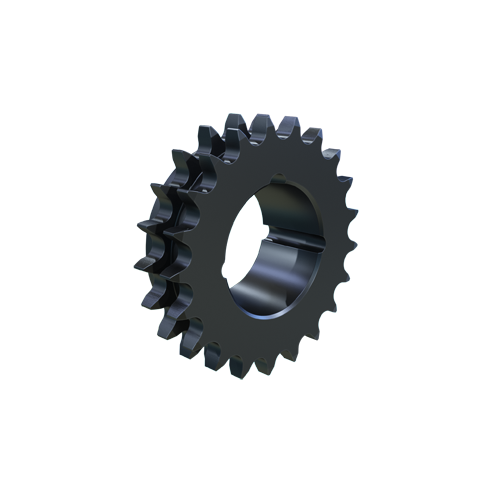

MARTIN SPROCKET D06BTB21 Roller Chain Sprocket, 21 Teeth, 63.910 mm Pitch Dia., 69.460 mm O.D., Steel
Item: BA6MUNModel: D06BTB21
7 In Stock
69.460 mm
Ships within 2 days via
€207.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 25.4 mm |
| Bushing Type | 1008 Taper |
| Chain Size | #06B-2 |
| Hub Dia. | 52 mm |
| Length Through Bore | 22.23 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 21 |
| Pitch | 9.53 mm |
| Type | Type B Double Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 2.84 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.93 |
| Ship width (cm) | 6.93 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Bushing Type | Material | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D06BTB19 | 57.87 mm | 19 | 22.23 mm | 47 mm | 25.4 mm | 1008 Taper | High Carbon Steel | 9.53 mm | €193.92 | |
 |
D06BTB24 | 72.97 mm | 24 | 25.4 mm | 62 mm | 31.75 mm | 1210 Taper | High Carbon Steel | 9.53 mm | €222.13 | |
 |
D06BTB35 | 106.26 mm | 35 | 25.4 mm | 83 mm | 41.28 mm | 1610 Taper | High Carbon Steel | 9.53 mm | €281.31 | |
 |
D06BTB40 | 121.4 mm | 40 | 25.4 mm | 83 mm | 41.28 mm | 1610 Taper | High Carbon Steel | 9.53 mm | €302.20 | |
 |
D06BTB45 | 136.55 mm | 45 | 25.4 mm | 83 mm | 41.28 mm | 1610 Taper | High Carbon Steel | 9.53 mm | €318.55 | |
 |
D06BTB48 | 145.64 mm | 48 | 25.4 mm | 83 mm | 41.28 mm | 1610 Taper | High Carbon Steel | 9.53 mm | €337.47 | |
 |
D06BTB57 | 172.91 mm | 57 | 25.4 mm | 92 mm | 41.28 mm | 1610 Taper | High Carbon Steel | 9.53 mm | €373.84 |
