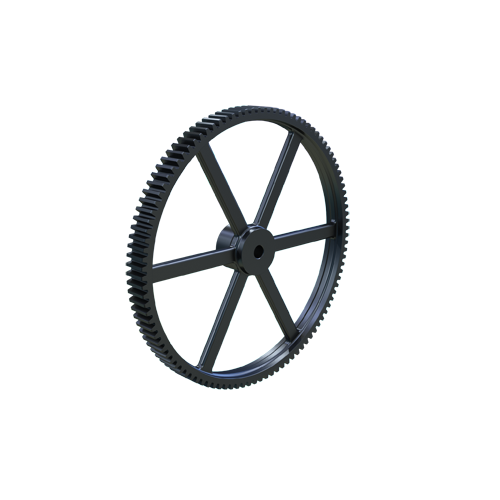

MARTIN SPROCKET C3105 Spur Gear, 3 Diametral Pitch, 35 Inch Pitch Dia., Reborable, Cast Iron
35"
Get it by Thursday, Aug 27
€6,692.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1 11/16" to 3 11/16" |
| Diametral Pitch | 3 |
| Face Width | 3" |
| Hub Dia. | 5.9845" |
| Hub Projection | 1 3/4" |
| Hub Type | B |
| Length | 4 3/4" |
| Material | Cast Iron |
| No. Of Teeth | 105 |
| Pitch Dia. | 35" |
| Pressure Angle | 14.5° |
| Type | Reboreable |
Shipping Info:
| Ship weight (kg) | 97.2 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 90.6 |
| Ship width (cm) | 90.6 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Teeth | Pitch Dia. | Hub Dia. | Bore Dia. | Type | Hub Projection | Hub Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C324 | 24 | - | - | - | - | - | - | Cast Iron | €2,009.40 | |
 |
C330 | 30 | - | - | - | - | - | - | Cast Iron | €2,385.20 | |
 |
C336 | 36 | 12" | 5.4845" | 1 7/16" to 3 1/4" | Reboreable | 1 3/4" | B | Cast Iron | €2,971.91 | |
 |
C342 | 42 | 14" | 5.485" | 1.438" to 3.25" | External Tooth Reborable | 1 3/4" | B2 | Cast Iron | €3,071.63 | |
 |
C348 | 48 | 16" | 5.4845" | 1 9/16" to 3 1/4" | Reboreable | 1 3/4" | B | Cast Iron | €3,366.88 | |
|
C328 | 28 | 9.333" | 5.2345" | 1 7/16" to 3 3/16" | Reboreable | 1 1/4" | B | Cast Iron | €2,086.09 | |
 |
C354 | 54 | 0.1427" | 5.4845" | 1 9/16" to 3 1/4" | Reboreable | 1 3/4" | B | Cast Iron | €3,516.45 |
