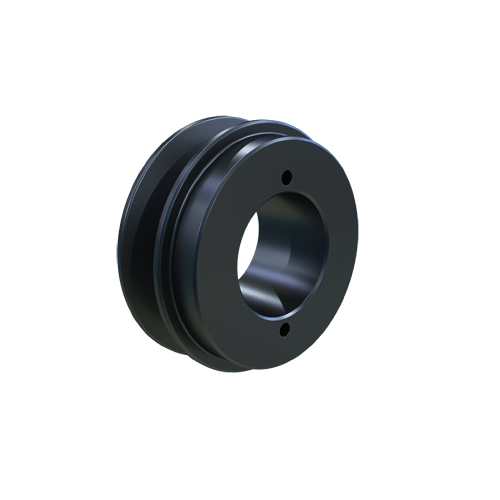

MARTIN SPROCKET BK32-H Sheave, 1.378 Inch Bore, 0.875 Inch Face Width, 3.350 Inch Outside Dia., Cast Iron
3.350"
Get it by Wednesday, Aug 26
€54.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 4la Or A Belt Pitch Dia. | 2 3/5" |
| 5l Or B Belt Pitch Dia. | 3" |
| Bore Dia. | 1.378" |
| Bore Type | MST Bushed |
| Bushing Type | H |
| Face Width | 7/8" |
| Hub Dia. | 2 1/8" |
| Hub Projection | 7/8" |
| Length | 1 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 1 |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Series | BK Series |
| Suitable For Use With | A, 4L, B, 5L Cross Section Belts |
| Type | Solid Type A |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 8.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Material | Price | |
|---|---|---|---|---|---|---|---|---|
 |
BK100-H | 9 3/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €111.43 | |
 |
BK105-H | 10 1/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €113.56 | |
 |
BK110-H | 10 3/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €122.49 | |
 |
BK115-H | 11 1/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €126.41 | |
 |
BK120-H | 11 3/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €135.56 | |
 |
BK130-H | 12 3/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €148.37 | |
|
BK140-H | 13 3/4" | Arm, Spoke Type C | 7/8" | 1.378" | Cast Iron | €168.23 |
