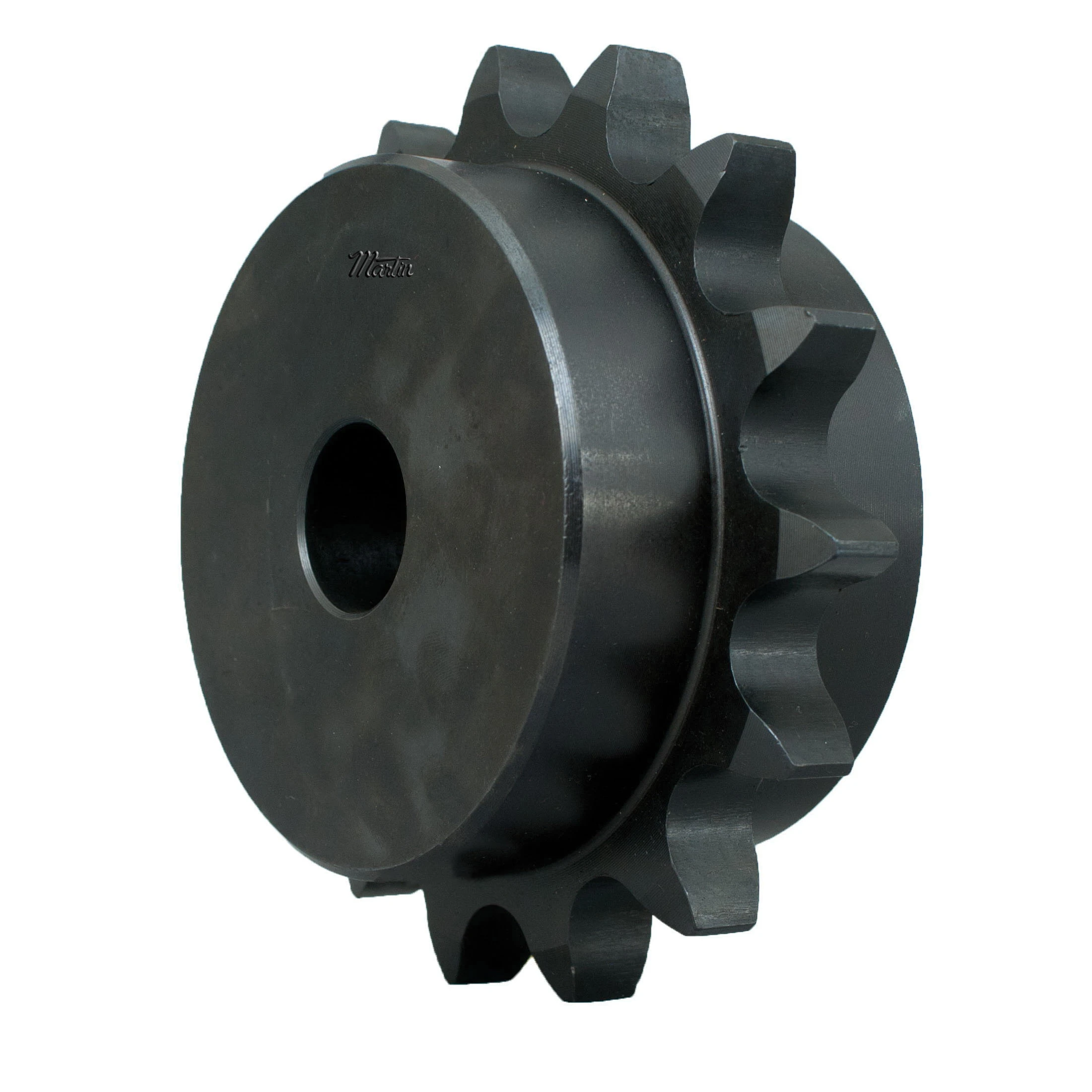

MARTIN SPROCKET 80C16 Sprocket, Stock Bore, 80 Chain, 16 Teeth, 5.126 Inch Pitch Dia., 5.627 Inch O.D., Steel
Item: AJ9LYCModel: 80C16
7 In Stock
Ships within 2 days via
€272.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" to 2 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | #80 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | C |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 2 3/8" |
| Length Thru Bore | 2 3/8" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 16 |
| Outside Dia. | 5.627" |
| Pitch | 1" |
| Pitch Dia. | 5.1258" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2 3/8" |
| Storage Dimension Length | 5.63" |
| Storage Dimension Width | 5.63" |
| Type | Type C Single Strand Welded Reboreable |
Shipping Info:
| Ship weight (kg) | 4.01 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 14.3 |
| Ship width (cm) | 14.3 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Width | Storage Dimension Height | Hub Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80C70 | 22.2892" | 70 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 22.87" | 3 1/2" | 6 1/4" | €582.61 | |
 |
80C72 | 22.9256" | 72 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 23 1/2" | 3 1/2" | 6 1/4" | €626.30 | |
 |
80C76 | 24.1984" | 76 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 24.78" | 3 1/2" | 6 1/4" | €698.88 | |
 |
80C80 | 25.471" | 80 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 26.05" | 3 1/2" | 6 1/4" | €720.75 | |
 |
80C84 | 26.7443" | 84 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 27.33" | 3 1/2" | 6 1/4" | €793.49 | |
 |
80C90 | 28.6537" | 90 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 29 6/25" | 3 1/2" | 6 1/4" | €831.94 | |
 |
80C96 | 30.5632" | 96 | 3 1/2" | 6 1/4" | 1 1/2" to 4 1/4" | 31.15" | 3 1/2" | 6 1/4" | €858.37 |
