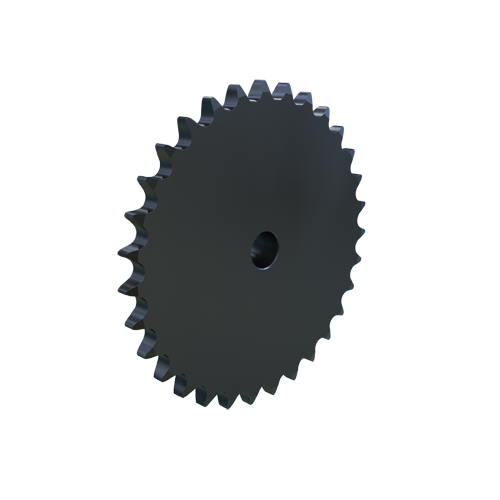

MARTIN SPROCKET 80B31 Sprocket, 80 Chain, 31 Teeth, 9.885 Inch Pitch Dia., 10.434 Inch O.D., Steel
10.434"
Get it by Thursday, Dec 18
€189.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Diameter | 4 3/4" |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 1/4" |
| Min. Bore Size | 1 3/16" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 31 |
| Outside Dia. | 10.434" |
| Pitch | 1" |
| Pitch Dia. | 9.8845" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 10.43" |
| Storage Dimension Width | 10.43" |
Shipping Info:
| Ship weight (kg) | 8.25 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 26.49 |
| Ship width (cm) | 26.49 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80B8 | 8 | 2.6131" | 3.014" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €66.60 | |
 |
80B9 | 9 | 2.9238" | 3.347" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €66.60 | |
 |
80B10 | 10 | 3.2361" | 3.678" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €72.64 | |
 |
80B11 | 11 | 3.5495" | 4.006" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €80.01 | |
 |
80B12 | 12 | 3.8637" | 4.332" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €86.05 | |
 |
80B13 | 13 | 4.1786" | 4.657" | 1 1/2" | 80 | 1" | Finished Bore | 1" | €92.64 | |
 |
80B14 | 14 | 4.494" | 4.981" | 1 1/2" | 80 | 1" | Finished Bore | 1" | €93.31 |
