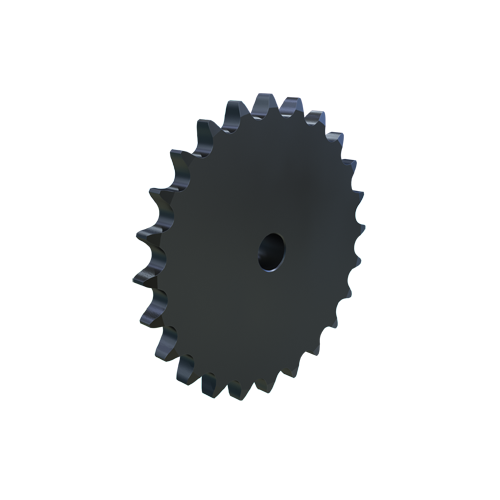

MARTIN SPROCKET 80B24 Roller Chain Sprocket, 80 Chain, Stock Bore, 24 Teeth, 7.661 Inch Pitch Dia., Steel
7.661"
Get it by Friday, Feb 20
€151.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| No. Of Teeth | 24 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 8.196" |
| Pitch | 1" |
| Pitch Dia. | 7.6613" |
| Pitch Diameter | 7.661" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 8 1/5" |
| Storage Dimension Width | 8 1/5" |
Shipping Info:
| Ship weight (kg) | 5.09 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 20.83 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80B35SS | 35 | 11.156" | 11.71" | 2" | 80 | 1" | Finished Bore | 1" | €1,563.12 | |
 |
80B11 | 11 | 3.5495" | 4.006" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €80.01 | |
 |
80B13 | 13 | 4.1786" | 4.657" | 1 1/2" | 80 | 1" | Finished Bore | 1" | €92.64 | |
 |
80B15 | 15 | 4.8097" | 5.305" | 1 1/2" | 80 | 1" | Finished Bore | 1" | €99.03 | |
 |
80B16 | 16 | 5.1258" | 5.627" | 1 1/2" | 80 | 1" | Finished Bore | 1" | €107.78 | |
 |
80B23 | 23 | 7.3439" | 7.876" | 1 3/4" | 80 | 1" | Finished Bore | 1" | €173.77 | |
 |
80B10 | 10 | 3.2361" | 3.678" | 1 5/8" | 80 | 1" | Finished Bore | 1" | €72.64 |
