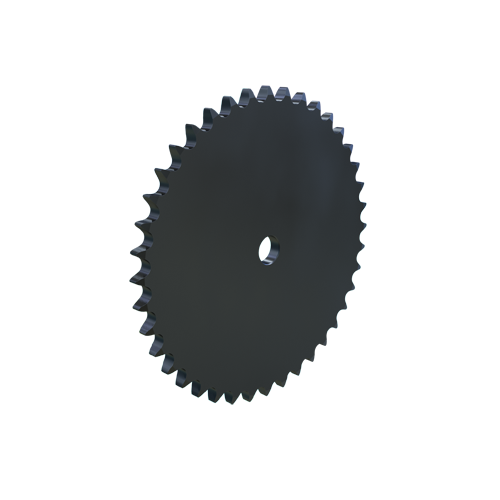

MARTIN SPROCKET 80A40 Sprocket, 80 Chain, 40 Teeth, 12.746 Inch Pitch Dia., 13.306 Inch O.D., Steel
13.306"
Get it by Thursday, Dec 18
€165.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.551" |
| Material | Steel |
| Min. Bore Size | 1 3/16" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 40 |
| Outside Dia. | 13.306" |
| Pitch | 1" |
| Pitch Dia. | 12.7455" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 0.575" |
| Storage Dimension Length | 13.306" |
| Storage Dimension Width | 13.306" |
Shipping Info:
| Ship weight (kg) | 8.54 |
| Ship height (cm) | 1.47 |
| Ship length (cm) | 33.81 |
| Ship width (cm) | 33.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80A9 | 9 | 2.9238" | 3.347" | 0.575" | 80 | 1" | 1" | Finished Bore | €50.97 | |
 |
80A10 | 10 | 3.2361" | 3.678" | 0.575" | 80 | 1" | 1" | Finished Bore | €52.07 | |
 |
80A11 | 11 | 3.5495" | 4.006" | 0.575" | 80 | 1" | 1" | Finished Bore | €54.27 | |
 |
80A12 | 12 | 3.8637" | 4.332" | 0.575" | 80 | 1" | 1" | Finished Bore | €56.18 | |
 |
80A13 | 13 | 4.1786" | 4.657" | 0.575" | 80 | 1" | 1" | Finished Bore | €60.84 | |
 |
80A14 | 14 | 4.494" | 4.981" | 0.575" | 80 | 1" | 1" | Finished Bore | €62.22 | |
 |
80A15 | 15 | 4.8097" | 5.305" | 0.575" | 80 | 1" | 1" | Finished Bore | €64.68 |
