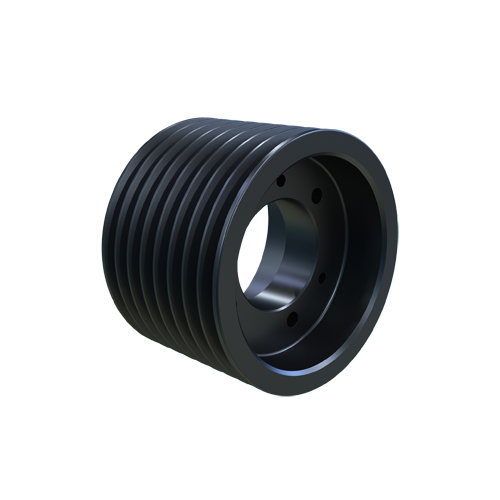

MARTIN SPROCKET 8 5V 850 E Sheave, QD Bushing, 8.5 Inch Outside Dia., 8 Groove, 8.4 Inch Pitch Dia., Cast Iron
8.5"
Get it by Friday, Aug 21
€586.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 7/8" to 8 7/8" |
| Bore Type | QD Bushed |
| Bushing Type | E |
| Face Width | 5.813" |
| Length | 5.81" |
| Material | Cast Iron |
| No. Of Grooves | 8 |
| Outside Dia. | 8 1/2" |
| Pitch Dia. | 8 2/5" |
| Product Datasheet | martin-sprocket-1-3v-1060-sds.pdf |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Solid Type A-1 |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 21.59 |
| Ship width (cm) | 21.59 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Pitch Dia. | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
8 5V 800 E | 8" | Solid Type A-1 | 5.813" | 7/8" to 8 7/8" | 7.9" | Cast Iron | - | €522.12 | |
 |
8 5V 900 E | 9" | Solid Type A-1 | 5 13/16" | 1" to 2 7/8" | 8.9" | Cast Iron | Gray | €613.73 | |
 |
8 5V 975 F | 9 3/4" | Solid Type A-1 | 5.813" | 1" to 4" | 9.65" | Cast Iron | - | €732.80 | |
 |
8 5V 1030 F | 10.3" | Solid Type A-1 | 5.813" | 1" to 4" | 10 1/5" | Cast Iron | - | €778.60 | |
 |
8 5V 1090 F | 10.9" | Solid Type A-1 | 5.813" | 1" to 4" | 10 4/5" | Cast Iron | - | €810.67 | |
 |
8 5V 1180 F | 11 4/5" | Type A-1 Web | 5.813" | 1" to 4" | 11.7" | Cast Iron | - | €856.45 | |
 |
8 5V 1250 F | 12 1/2" | Arm, Spoke Type A-3 | 5.813" | 1" to 4" | 12 2/5" | Cast Iron | - | €906.84 |
