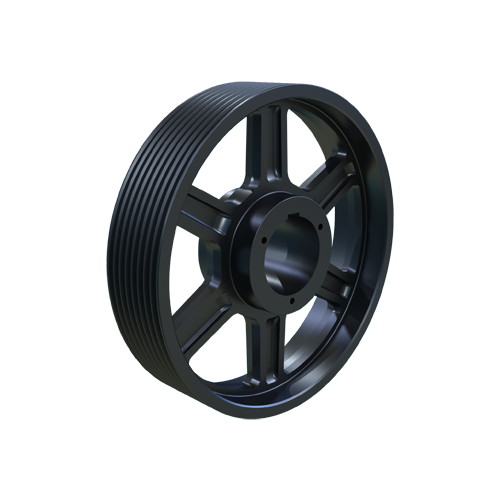

MARTIN SPROCKET 8 5V 2500 U Sheave, MST Bushing, 25 Inch Outside Dia., 8 Groove, 24.9 Inch Pitch Dia., Cast Iron
25"
Get it by Thursday, Aug 27
€2,715.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | 5V |
| Bushing Size | U1 |
| Bushing Style | Mst |
| Face Width | 5.812" |
| Material | Cast Iron |
| Max. Bore Size | 5 1/2" |
| Min. Bore Size | 2 3/8" |
| No. Of Grooves | 8 |
| Outside Dia. | 25" |
| Pitch Dia. | 24.9" |
| Sheave Construction | Arm, Spoke |
Shipping Info:
| Ship weight (kg) | 85.5 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 63.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Face Width | Material | Price | |
|---|---|---|---|---|---|---|---|
 |
8 5V 1090 S | 10.9" | 10 4/5" | 5.812" | Cast Iron | €1,075.50 | |
 |
8 5V 1180 S | 11 4/5" | 11.7" | 5.812" | Cast Iron | €1,155.50 | |
 |
8 5V 1400 S | 14" | 13.9" | 5.812" | Cast Iron | €1,481.54 | |
 |
8 5V 1500 S | 15" | 14.9" | 5.812" | Cast Iron | €1,727.68 | |
 |
8 5V 2120 U | 21.2" | 21.1" | 5.812" | Cast Iron | €2,507.02 | |
 |
8 5V 1600 S | 16" | 15.9" | 5.812" | Cast Iron | €1,973.82 | |
 |
8 5V 800 R | 8" | 7.9" | 5.812" | Cast Iron | €722.60 |
