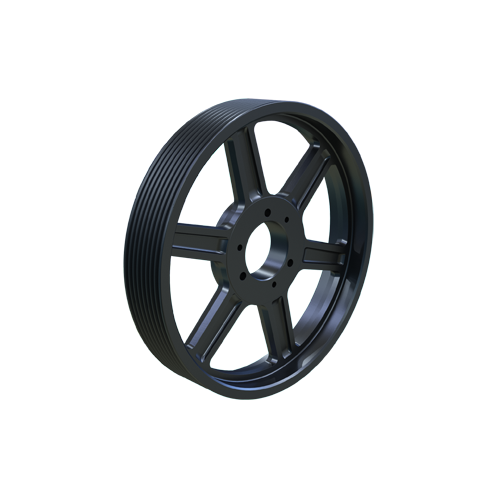

MARTIN SPROCKET 8 3V 1900 E Sheave, QD Bushing, 19 Inch Outside Dia., 8 Groove, 18.95 Inch Pitch Dia., Cast Iron
Get it by Friday, Aug 21
€1,016.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1" to 2 7/8" |
| Bore Type | QD Bushed |
| Bushing Type | E |
| Color | Gray |
| Face Width | 3 17/32" |
| Length | 3.53" |
| Material | Cast Iron |
| No. Of Grooves | 8 |
| Outside Dia. | 19" |
| Pitch Dia. | 18.95" |
| Suitable For Use With | 3V Cross Section V Belts |
| Type | Arm, Spoke Type A-3 |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 8.97 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 48.26 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Pitch Dia. | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |

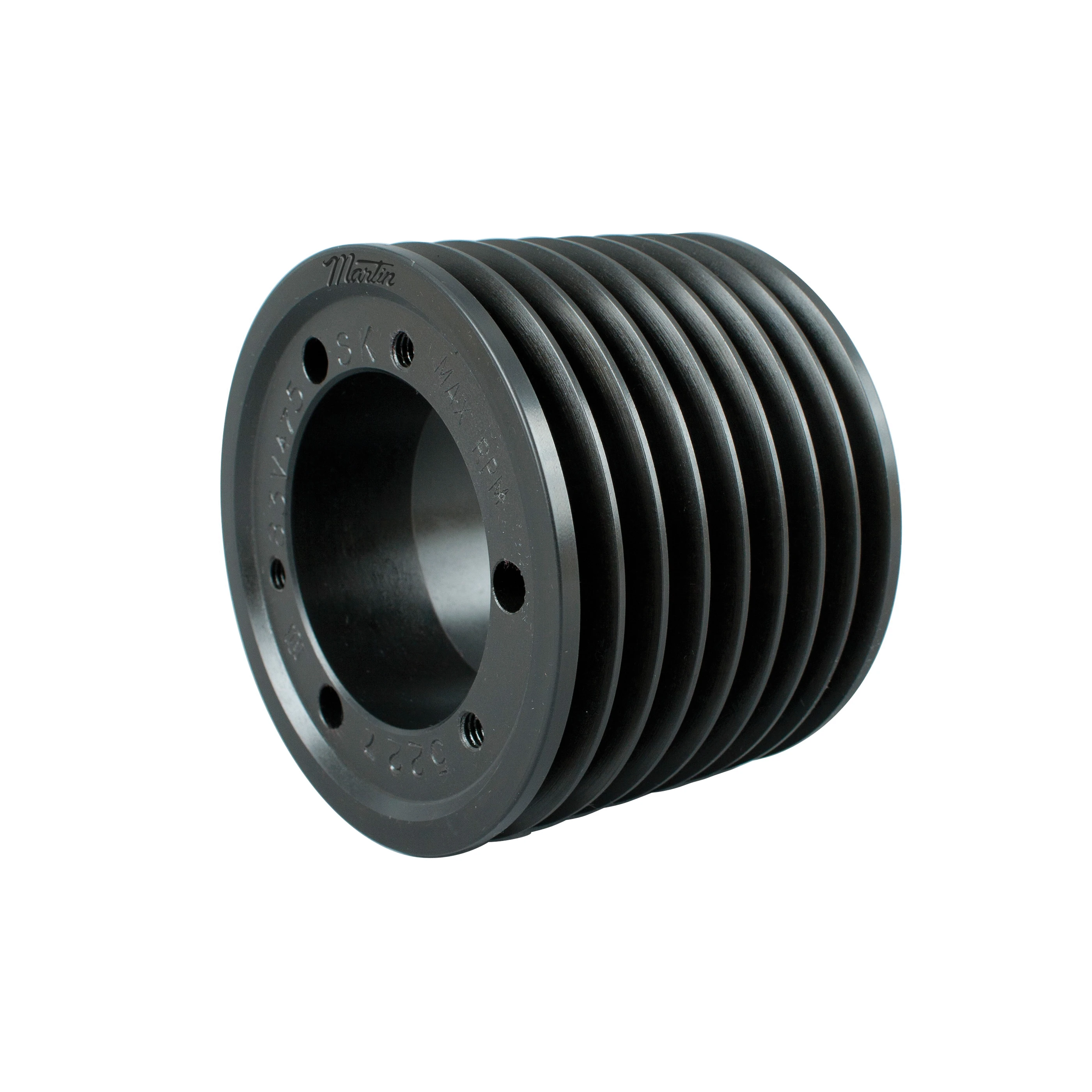

8 3V 475 SK | 4 3/4" | Solid Type D-1 | 3 17/32" | 1" to 2 1/8" | 4.7" | Cast Iron | Gray | €242.75 | |
 |

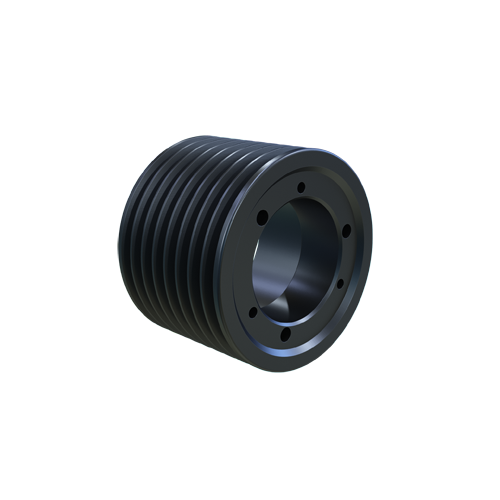

8 3V 500 SK | 5" | Solid Type D-1 | 3.531" | 1/2" to 2 5/8" | 4.95" | Cast Iron | - | €251.90 | |
 |

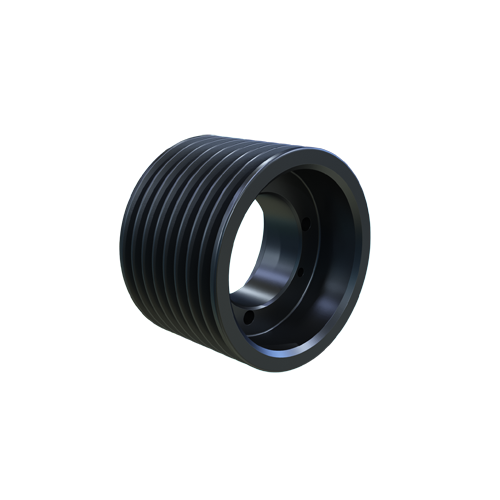

8 3V 530 SK | 5.3" | Solid Type A-1 | 3.531" | 1/2" to 2 5/8" | 5 1/4" | Cast Iron | - | €283.96 | |
 |

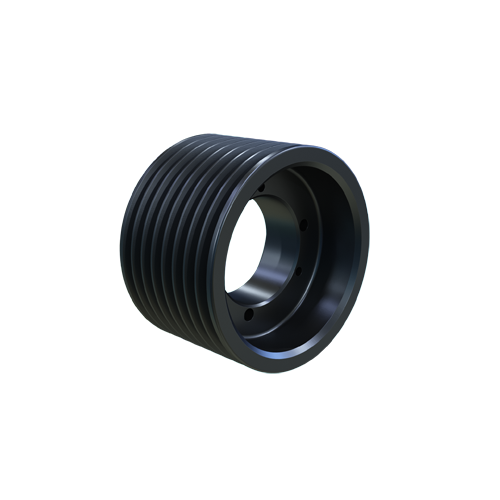

8 3V 560 SK | 5 3/5" | Solid Type A-1 | 3.531" | 1/2" to 2 5/8" | 5.55" | Cast Iron | - | €308.71 | |
|
8 3V 600 SK | 6" | Solid Type A-1 | 3 17/32" | 1" to 2 1/8" | 5.95" | Cast Iron | Gray | €293.13 | |
 |

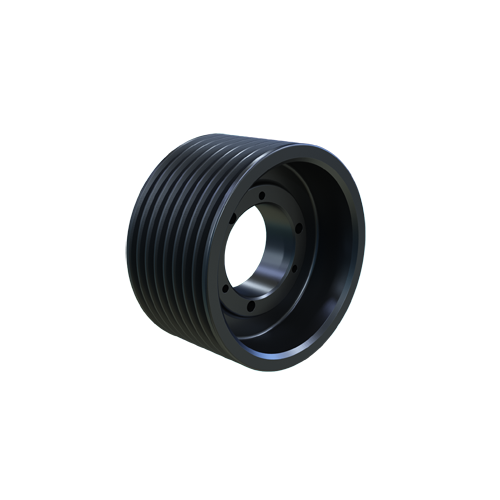

8 3V 650 SK | 6 1/2" | Solid Type A-2 | 3.531" | 1/2" to 2 5/8" | 6.45" | Cast Iron | - | €297.70 | |
 |

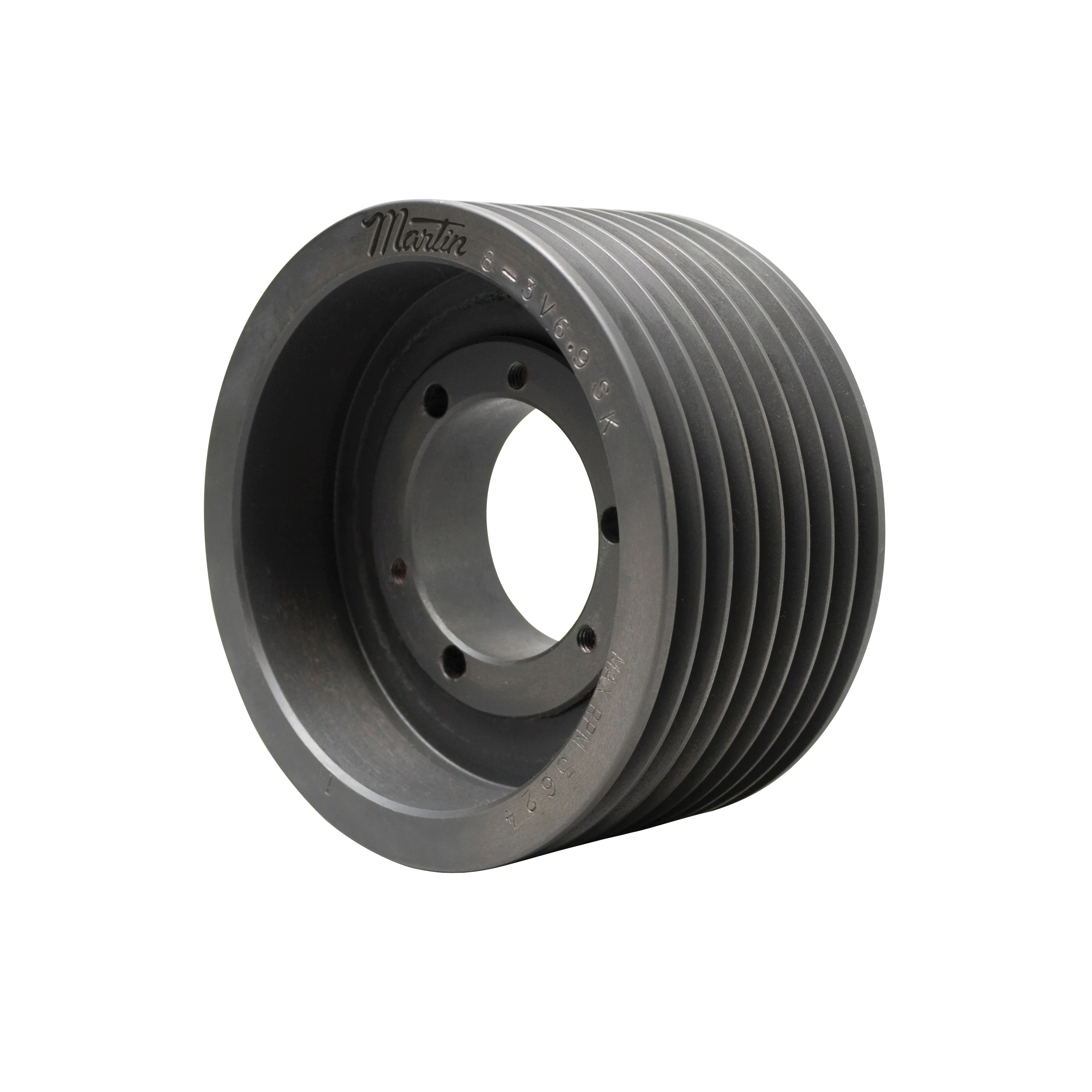

8 3V 690 SK | 6.9" | Solid Type A-1 | 3 17/32" | 1" to 2 1/8" | 6.85" | Cast Iron | Gray | €302.26 |
