MARTIN SPROCKET 60BTB14 Roller Chain Sprocket, 60 Chain, Bushed TB, 14 Teeth, 3.371 Inch Pitch Dia., Steel
Item: AJ8YPKModel: 60BTB14
7 In Stock
Ships within 2 days via
€100.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 1210 |
| Bushing Type | 1210 Taper Lock |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Dia. | 2.595" |
| Hub Outside Dia. | 2.4688" |
| Individually Packaged | Yes |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 1/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 14 |
| Outside Dia. | 3.736" |
| Pitch | 3/4" |
| Pitch Dia. | 3.3705" , 3.371" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Type | Taper Bushed Type B |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 9.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60BTB11 | 2.662" | 3.004" | 1 7/8" | 7/8" | 1008 Taper Lock | 60 | 3/4" | Bushed | €87.54 | |
|
60BTB12 | 2.898" | 3.249" | 1.938" | 7/8" | 1008 Taper Lock | 60 | 3/4" | Bushed | €89.35 | |
 |
60BTB13 | 3.134" | 3.493" | 2.469" | 1" | 1210 Taper Lock | 60 | 3/4" | Bushed | €89.58 | |
 |
60BTB15 | 3.607" | 3.978" | 2.781" | 1" | 1610 Taper Lock | 60 | 3/4" | Bushed | €106.72 | |
|
60BTB16 | 3.844" | 4.221" | 2.995" | 1" | 1610 Taper Lock | 60 | 3/4" | Bushed | €109.76 | |
 |
60BTB17 | 4.082" | 4.462" | 3 1/4" | 1" | 1610 Taper Lock | 60 | 3/4" | Bushed | €115.01 | |
 |

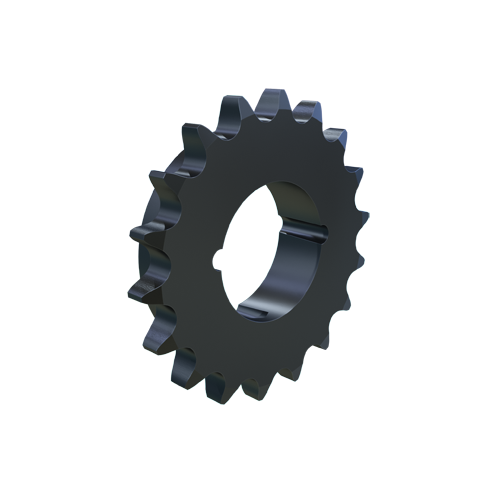

60BTB18 | 4.319" | 4.703" | 3 1/2" | 1" | 1610 Taper Lock | 60 | 3/4" | Bushed | €121.77 |
