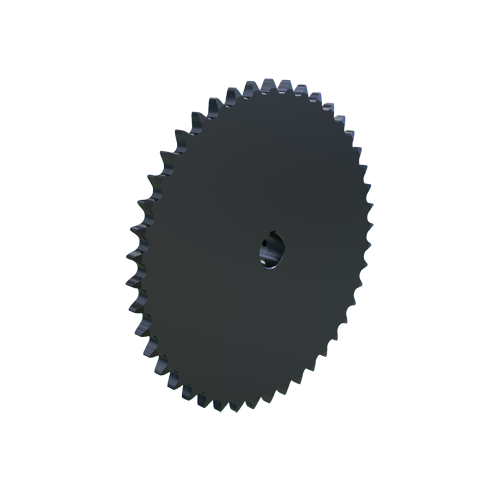

MARTIN SPROCKET 60BS44 1 1/8 Roller Chain Sprocket, Bore To Size, 1.125 Inch Bore, 10.936 Inch Outside Dia. Steel
10.936"
1.125"
Get it by Tuesday, Mar 3
€176.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 1/8" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/8" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 44 |
| O.d. | 10.936" |
| Outside Dia. | 10.936" |
| Pitch | 3/4" |
| Pitch Dia. | 10.5132" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 10.936" |
| Storage Dimension Width | 10.936" |
| Type | Type B Bored to Size Single Strand Welded |
Shipping Info:
| Ship weight (kg) | 6.03 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 27.79 |
| Ship width (cm) | 27.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Number Of Teeth | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60BS11 1 1/4 | 2.662" | 11 | 3.004" | 1 1/4" | 5/16"-18 | 1 1/4" | 60 | 3/4" | €48.78 | |
 |
60BS12 1 1/4 | 2.8978" | 12 | 3.249" | 1 1/4" | 5/16"-18 | 1 1/4" | 60 | 3/4" | €54.27 | |
 |
60BS18 1 1/4 | 4.3191" | 18 | 4.703" | 1 1/4" | 5/16"-18 | 1 1/4" | 60 | 3/4" | €102.25 | |
 |
60BS9 5/8 | 2.1929" | 9 | 2.511" | 1 1/4" | 1/4"-20 | 5/8" | 60 | 3/4" | €43.29 | |
|
60BS10 5/8 | 2.4271" | 10 | 2.758" | 1 1/4" | 1/4"-20 | 5/8" | 60 | 3/4" | €45.21 | |
 |
60BS9 3/4 | 2.1929" | 9 | 2.511" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €43.29 | |
 |
60BS10 3/4 | 2.4271" | 10 | 2.758" | 1 1/4" | 1/4"-20 | 3/4" | 60 | 3/4" | €45.21 |
