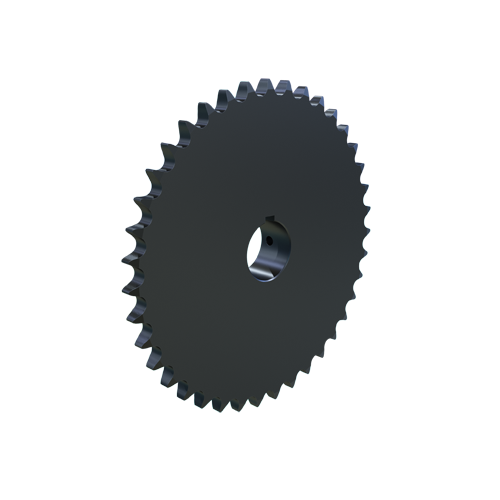

MARTIN SPROCKET 60BS39 1 3/4 Roller Chain Sprocket, Bore To Size, 1.750 Inch Bore, 9.740 Inch Outside Dia. Steel
9.740"
1.750"
Get it by Tuesday, Sep 1
€156.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 3/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Key Way Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 39 |
| Pitch | 3/4" |
| Pitch Dia. | 9.3206" , 9.321" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 9.74" |
| Storage Dimension Width | 9.74" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 5.11 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 24.74 |
| Ship width (cm) | 24.74 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Length Thru Bore | Set Screw Size | Key Way Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60BS9 3/4 | 2.193" | 9 | 1 1/4" | 1.563" | 3/4" | 1 1/4" | 1/4"-20 | 3/16" x 3/32" | €43.29 | |
 |
60BS9 1 | 2.193" | 9 | 1 1/4" | 1.563" | 1" | 1 1/4" | 5/16"-18 | 1/4" x 1/8" | €43.29 | |
 |
60BS10 3/4 | 2.427" | 10 | 1 1/4" | 1.938" | 3/4" | 1 1/4" | 1/4"-20 | 3/16" x 3/32" | €45.21 | |
 |
60BS10 7/8 | 2.427" | 10 | 1 1/4" | 1.938" | 7/8" | 1 1/4" | 1/4"-20 | 3/16" x 3/32" | €45.21 | |
 |
60BS10 1 | 2.427" | 10 | 1 1/4" | 1.938" | 1" | 1 1/4" | 5/16"-18 | 1/4" x 1/8" | €45.21 | |
 |
60BS10 1 1/8 | 2.427" | 10 | 1 1/4" | 1.938" | 1 1/8" | 1 1/4" | 5/16"-18 | 1/4" x 1/8" | €45.21 | |
 |
60BS10 1 3/16 | 2.427" | 10 | 1 1/4" | 1.938" | 1 3/16" | 1 1/4" | 5/16"-18 | 1/4" x 1/8" | €45.21 |
