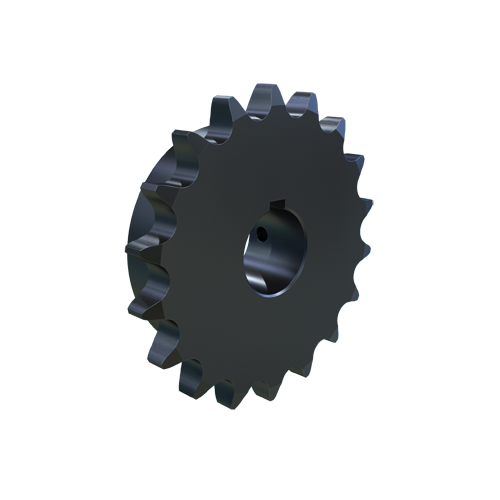

MARTIN SPROCKET 60BS18W 1 1/4 Roller Chain Sprocket, 60 Chain No., 1.250 Inch Bore, 4.703 Inch Outside Dia. Steel
Item: AJ8XLRModel: 60BS18W 1 1/4
7 In Stock
Ships within 2 days via
€102.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Dia. | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | Yes |
| Key Way Size | 5/16" x 5/32" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 18 |
| Outside Dia. | 4.703" |
| Pitch | 3/4" |
| Pitch Dia. | 4.319" , 4.3191" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) At 90° F/Keyway |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 5 1/4" |
| Storage Dimension Width | 5 1/4" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 1.46 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 11.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Hub Outside Dia. | Construction | Construction Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

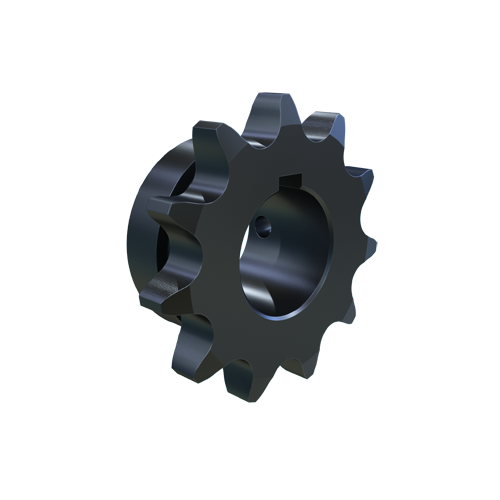

60BS11W 1 1/4 | 2.662" | 11 | 2.063" | 3 9/16" | 3 9/16" | 2 1/16" | Solid With Recess Groove | Solid With Recess Groove | €48.78 | |
 |

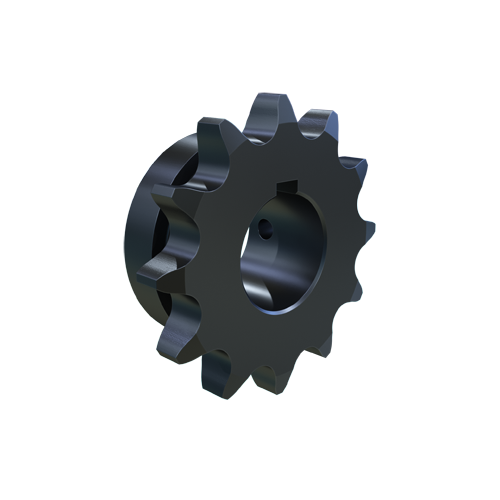

60BS12W 1 1/4 | 2.898" | 12 | 2 3/8" | 4 5/16" | 4 5/16" | 2 3/8" | Solid With Recess Groove | Solid With Recess Groove | €54.27 |
