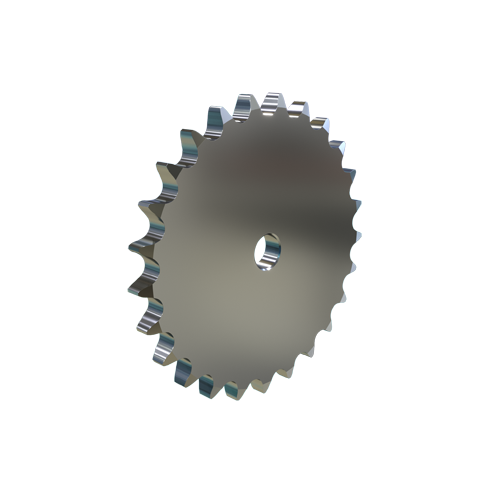

MARTIN SPROCKET 60A25SS Roller Chain Sprocket, 60 Chain, 25 Teeth, 5.984 Inch Pitch Dia., 6.387 Inch O.D., SS
Item: AJ9MTDModel: 60A25SS
7 In Stock
Ships within 2 days via
€735.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 23/32" to 23/32" |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 0.7188" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Grade | Grade 303, Grade304 |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.4535" , 0.459" |
| Material | Stainless Steel |
| Min. Bore Size | 0.7188" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 25 |
| Outside Dia. | 6.387" |
| Pitch | 3/4" |
| Pitch Dia. | 5.984" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 0.459" |
| Storage Dimension Length | 6.627" |
| Storage Dimension Width | 6.627" |
| Type | Type A Single Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 1.17 |
| Ship length (cm) | 16.23 |
| Ship width (cm) | 16.23 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Finished Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
60A10 | Steel | 2.427" | 10 | 0.459" | 3/4" | 2.759" | 2.759" | 3/4" | €42.75 | |
 |
60A11 | Steel | 2.662" | 11 | 0.459" | 3/4" | 3.005" | 3.005" | 3/4" | €44.40 | |
 |
60A12 | Steel | 2.898" | 12 | 0.459" | 3/4" | 3.249" | 3.249" | 3/4" | €45.21 | |
 |
60A13 | Steel | 3.134" | 13 | 0.459" | 3/4" | 3.493" | 3.493" | 3/4" | €46.31 | |
 |
60A14 | Steel | 3.371" | 14 | 0.459" | 3/4" | 3.736" | 3.736" | 3/4" | €48.24 | |
 |
60A15 | Steel | 3.607" | 15 | 0.459" | 3/4" | 3.978" | 3.978" | 3/4" | €50.16 | |
 |
60A16 | Steel | 3.844" | 16 | 0.459" | 3/4" | 4.22" | 4.22" | 3/4" | €51.81 |
