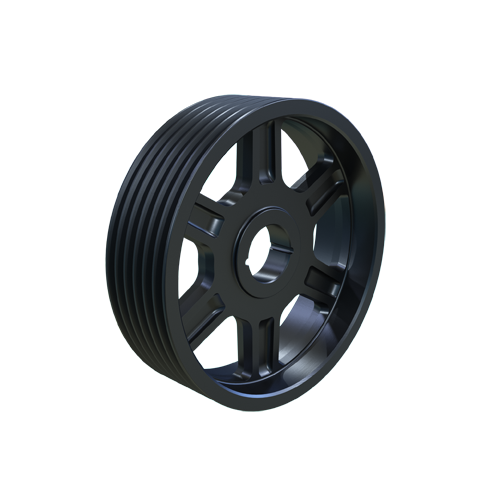

MARTIN SPROCKET 6 B 160 TB Sheave, TB Bushing, 16.350 Inch Outside Dia., 6 Groove, 16 Inch Pitch Dia., Cast Iron
16.350"
Get it by Tuesday, Sep 1
€798.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1/2" to 2 1/4" |
| Bore Type | TB Bushed |
| Bushing Type | 2517 |
| Class | Class 30 |
| Color | Gray |
| Face Width | 4 3/4" |
| Length | 4 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 6 |
| Pitch Dia. | 16" |
| Suitable For Use With | A, B Cross Section Belts |
| Type | Arm, Spoke Type A-3 |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 41.53 |
| Ship width (cm) | 41.53 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Bore Dia. | Material | Pitch Dia. | Face Width | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
6 B 42 TB | 4.55" | Solid Type A-1 | 1/2" to 1 5/8" | Steel | 4 1/5" | 4 3/4" | - | €255.28 | |
 |
6 B 54 TB | 5 3/4" | Solid Type B-1 | 1/2" to 2 1/4" | Cast Iron | 5 2/5" | 4 3/4" | Gray | €286.00 | |
 |
6 B 56 TB | 5.95" | Solid Type A-1 | 1/2" to 2 1/4" | Cast Iron | 5 3/5" | 4 3/4" | Gray | €288.36 | |
 |
6 B 60 TB | 6.35" | Solid Type A-1 | 1/2" to 2 1/2" | Cast Iron | 6" | 4 3/4" | - | €311.99 | |
 |
6 B 64 TB | 6 3/4" | Type A Solid | 1/2" to 2 1/4" | Cast Iron | 6 2/5" | 4 3/4" | - | €321.45 | |
 |
6 B 68 TB | 7.15" | Solid Type B-1 | 1/2" to 2 1/4" | Cast Iron | 6 4/5" | 4 3/4" | Gray | €345.08 | |
 |
6 B 74 TB | 7 3/4" | Solid Type A-1 | 1/2" to 2 1/2" | Cast Iron | 7 2/5" | 4 3/4" | - | €486.89 |
