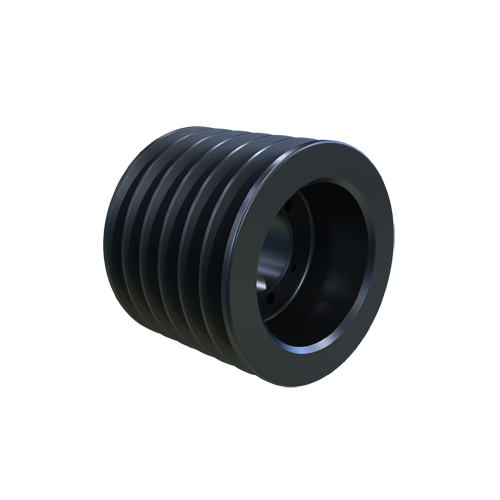

MARTIN SPROCKET 6 5V 550 SD Sheave, QD Bushing, 5.5 Inch Outside Dia., 6 Groove, 5.4 Inch Pitch Dia., Cast Iron
5.5"
Get it by Friday, Aug 28
€316.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1" to 1 11/16" |
| Bore Type | QD Bushed |
| Bushing Type | SD |
| Color | Gray |
| Face Width | 4 7/16" |
| Length | 4 11/25" |
| Material | Cast Iron |
| No. Of Grooves | 6 |
| Pitch Dia. | 5 2/5" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Solid Type A-1 |
Shipping Info:
| Ship weight (kg) | 4.86 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Face Width | Bore Dia. | Pitch Dia. | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
6 5V 710 SF | 7.1" | Type A Solid | 4 7/16" | 1 1/16" to 2 5/16" | 7" | Cast Iron | - | €373.73 | |
 |
6 5V 750 SF | 7 1/2" | Solid Type A-1 | 4.438" | 0.5" to 2.938" | 7 2/5" | Cast Iron | - | €407.61 | |
 |
6 5V 800 E | 8" | Solid Type A-1 | 4.438" | 7/8" to 8 7/8" | 7.9" | Cast Iron | - | €425.94 | |
 |
6 5V 850 E | 8 1/2" | Solid Type A-1 | 4.438" | 7/8" to 8 7/8" | 8 2/5" | Cast Iron | - | €453.42 | |
 |
6 5V 900 E | 9" | Solid Type A-1 | 4.438" | 7/8" to 8 7/8" | 8.9" | Cast Iron | - | €503.81 | |
 |
6 5V 925 E | 9 1/4" | Solid Type A-1 | 4 7/16" | 1" to 2 7/8" | 9.15" | Cast Iron | Gray | €522.12 | |
|
6 5V 975 E | 9 3/4" | Solid Type A-1 | 4 7/16" | 1" to 2 7/8" | 9.65" | Cast Iron | Gray | €531.27 |
