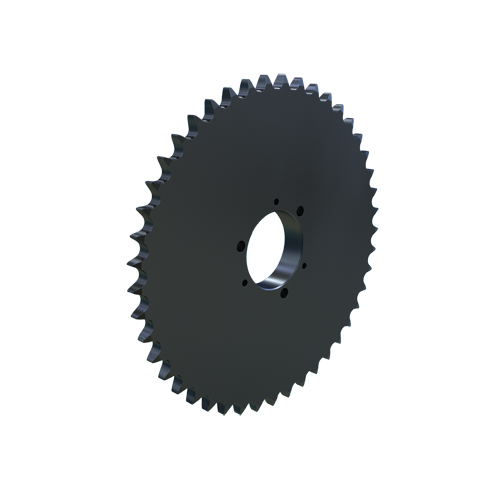

MARTIN SPROCKET 50SDS45 Sprocket, QD, 50 Chain, 45 Teeth, 8.960 Inch Pitch Dia., 9.313 Inch O.D., Steel
Item: AJ8ZTUModel: 50SDS45
7 In Stock
9.313"
Ships within 2 days via
€185.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | SDS |
| Bushing Size | SDS |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 50 |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 45 |
| Outside Dia. | 9.313" |
| Pitch | 5/8" |
| Pitch Dia. | 8.9597" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 9.313" |
| Storage Dimension Width | 9.313" |
Shipping Info:
| Ship weight (kg) | 2.66 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 23.65 |
| Ship width (cm) | 23.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50JA12 | 12 | 2.4148" | 2.708" | 5/8" | Type JA QD | 50 | 5/8" | Bushed | €66.70 | |
 |
50JA13 | 13 | 2.6116" | 2.911" | 5/8" | Type JA QD | 50 | 5/8" | Bushed | €76.26 | |
 |
50JA14 | 14 | 2.8087" | 3.113" | 5/8" | Type JA QD | 50 | 5/8" | Bushed | €78.09 | |
 |
50JA15 | 15 | 3.0061" | 3.315" | 5/8" | Type JA QD | 50 | 5/8" | Bushed | €82.44 | |
 |
50JA16 | 16 | 3.2036" | 3.517" | 5/8" | Type JA QD | 50 | 5/8" | Bushed | €84.57 | |
 |
50SH17 | 17 | 3.4014" | 3.718" | 1 5/16" | Type SH QD | 50 | 5/8" | Bushed | €89.22 | |
 |
50SH18 | 18 | 3.5992" | 3 23/25" | 1 5/16" | Type SH QD | 50 | 5/8" | Bushed | €91.31 |
