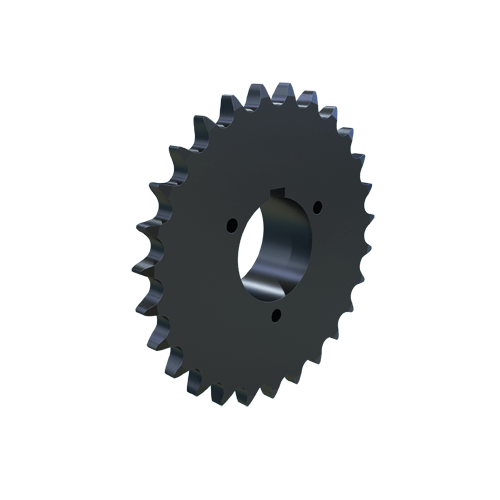

MARTIN SPROCKET 50P27H Roller Chain Sprocket, 50 Chain, Bushed MST, 27 Teeth, 5.384 Inch Pitch Dia., Steel
Item: AL4XCCModel: 50P27H
7 In Stock
Ships within 2 days via
€199.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Bushing Type | MST P1 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 3" |
| Hub Outside Dia. | 3" |
| Individually Packaged | Yes |
| Key Way Size | 3/8" |
| Keyway Width | 3/8" |
| Length Through Bore | 1 5/16" |
| Length Thru Bore | 1 5/16" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 27 |
| Pitch | 5/8" |
| Pitch Dia. | 5.3836" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 6" |
| Storage Dimension Width | 6" |
| Type | Type 4 Single Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 1.29 |
| Ship height (cm) | 3.33 |
| Ship length (cm) | 14.53 |
| Ship width (cm) | 14.53 |
| Country of Origin | US |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50P31 | 6.1778" | 31 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #50 | 6.521" | 6.521" | €210.13 | |
| 50Q32 | 6.3764" | 32 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #50 | 6.721" | 6.721" | €212.29 | |
| 50P33 | 6.5751" | 33 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #50 | 6 23/25" | 6 23/25" | €214.45 | |
| 50P34 | 6.7737" | 34 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #50 | 7 3/25" | 7 3/25" | €217.45 | |
| 50P35 | 6.9724" | 35 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #50 | 7.319" | 7.319" | €220.18 | |
| 50Q35 | 6.9724" | 35 | 1 3/4" | 4 1/4" | 0.75" to 2.688" | #50 | 7.319" | 7.319" | €220.18 | |
| 50P36 | 7.1711" | 36 | 1 5/16" | 3 1/4" | 1/2" to 1 3/4" | #50 | 7.519" | 7.519" | €223.05 |
