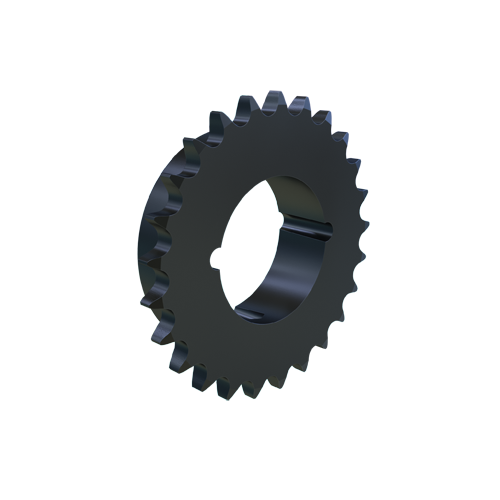

MARTIN SPROCKET 50BTB25 Roller Chain Sprocket, 50 Chain, Bushed TB, 25 Teeth, 4.987 Inch Pitch Dia., Steel
Item: AJ8YLEModel: 50BTB25
7 In Stock
Ships within 2 days via
€131.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 2012 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Diameter | 4" |
| Hub Outside Dia. | 3 9/16" |
| Individually Packaged | Yes |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 25 |
| Outside Dia. | 5.322" |
| Pitch | 5/8" |
| Pitch Dia. | 4.9867" |
| Pitch Diameter | 4.987" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.31" |
| Storage Dimension Length | 5 5/8" |
| Storage Dimension Width | 5 5/8" |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.51 |
| Ship width (cm) | 13.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50BTB12 | 12 | 2.4148" | 2.708" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €83.04 | |
 |
50BTB13 | 13 | 2.6116" | 2.911" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €84.23 | |
 |
50BTB14 | 14 | 2.8087" | 3.113" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €88.14 | |
 |
50BTB15 | 15 | 3.0061" | 3.315" | 1" | 1210 Taper Lock | 50 | 5/8" | Bushed | €90.83 | |
 |
50BTB16 | 16 | 3.2036" | 3.517" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €91.01 | |
 |
50BTB17 | 17 | 3.4014" | 3.718" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €97.54 | |
 |
50BTB18 | 18 | 3.5992" | 3 23/25" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €99.00 |
