MARTIN SPROCKET 50BTB12H Sprocket, Taper, 50 Chain, 12 Teeth, 2.415 Inch Pitch Dia., 2.708 Inch O.D., Steel
Item: AJ8YHXModel: 50BTB12H
7 In Stock
Ships within 2 days via
€83.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | 1008 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid With Recess Groove |
| Construction Type | Solid With Recess Groove |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 1 15/16" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 12 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 12 |
| Outside Dia. | 2.708" |
| Pitch | 5/8" |
| Pitch Dia. | 2.4148" |
| Pitch Diameter | 2.415" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 2 7/8" |
| Storage Dimension Width | 2 7/8" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 6.88 |
| Ship width (cm) | 6.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50BTB13H | 13 | 2.6116" | 2.911" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €84.23 | |
|
50BTB14H | 14 | 2.8087" | 3.113" | 7/8" | 1008 Taper Lock | 50 | 5/8" | Bushed | €88.14 | |
|
50BTB15H | 15 | 3.0061" | 3.315" | 1" | 1210 Taper Lock | 50 | - | Bushed | €90.83 | |
|
50BTB16H | 16 | 3.2036" | 3.517" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €91.01 | |
|
50BTB17H | 17 | 3.4014" | 3.718" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €97.54 | |
|
50BTB18H | 18 | 3.5992" | 3 23/25" | 1 3/4" | 1610 Taper Lock | 50 | 5/8" | Bushed | €99.00 | |
 |

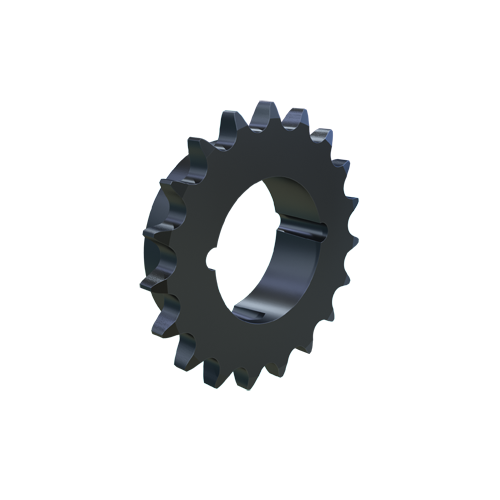

50BTB19H | 19 | 3.7972" | 4.12" | 1" | 1610 Taper Lock | 50 | 5/8" | Bushed | €102.02 |
