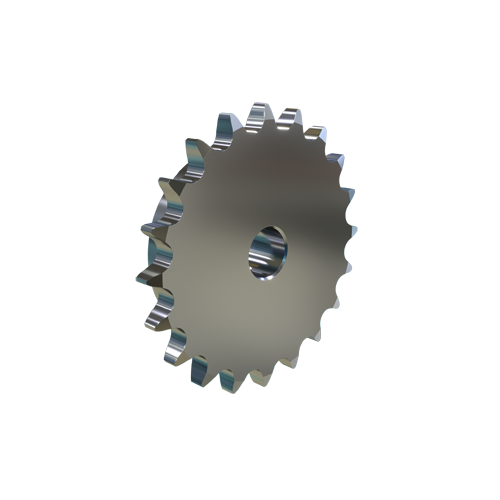

MARTIN SPROCKET 50B20SS Roller Chain Sprocket, 50 Chain, 20 Teeth, 3.995 Inch Pitch Dia., 4.321 Inch O.D., SS
Item: AJ9BCNModel: 50B20SS
7 In Stock
Ships within 2 days via
€428.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Diameter | 2 1/2" |
| Hub Outside Dia. | 3" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Stainless Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 20 |
| Outside Dia. | 4.321" |
| Pitch | 5/8" |
| Pitch Dia. | 3.995" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 4.522" |
| Storage Dimension Width | 4.522" |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.97 |
| Ship width (cm) | 10.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Number Of Teeth | Outside Dia. | Length Through Bore | Set Screw Size | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50B8 | 1.6332" | 8 | 1.884" | 1" | - | 50 | 5/8" | Finished Bore | €33.41 | |
 |
50B9 | 1.8274" | 9 | 2.092" | 1" | - | 50 | 5/8" | Finished Bore | €33.99 | |
 |
50B10 | 2.023" | 10 | 2.299" | 1" | - | 50 | 5/8" | Finished Bore | €37.25 | |
 |
50B11 | 2.218" | 11 | 2.504" | 1" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50B12 | 2.4148" | 12 | 2.708" | 1" | - | 50 | 5/8" | Finished Bore | €41.36 | |
 |
50B13 | 2.6116" | 13 | 2.911" | 1" | - | 50 | 5/8" | Finished Bore | €43.29 | |
 |
50B14 | 2.8087" | 14 | 3.113" | 1" | 1/4"-20 | 50 | 5/8" | Finished Bore | €45.21 |
