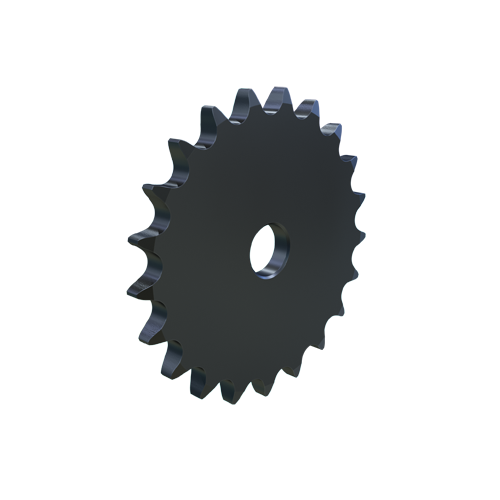

MARTIN SPROCKET 50A21 Sprocket, Stock Bore, 50 Chain, 21 Teeth, 4.193 Inch Pitch Dia., 4.522 Inch O.D., Steel
Item: AJ8RNZModel: 50A21
7 In Stock
4.522"
Ships within 2 days via
€46.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.343" |
| Length Thru Bore | 0.315" |
| Material | Steel |
| Min. Bore Size | 3/4" |
| No. Of Teeth | 21 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 21 |
| Outside Dia. | 4.522" |
| Pitch | 5/8" |
| Pitch Dia. | 4.1934" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 0.343" |
| Storage Dimension Length | 4.522" |
| Storage Dimension Width | 4.522" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 0.86 |
| Ship length (cm) | 11.48 |
| Ship width (cm) | 11.48 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
50A12 | 12 | 2.4148" | 2.708" | 0.343" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50A13 | 13 | 2.6116" | 2.911" | 0.343" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50A14 | 14 | 2.8087" | 3.113" | 0.343" | - | 50 | 5/8" | Finished Bore | €39.75 | |
 |
50A15 | 15 | 3.0061" | 3.315" | 0.343" | - | 50 | 5/8" | Finished Bore | €40.84 | |
 |
50A16 | 16 | 3.2036" | 3.517" | 0.343" | - | 50 | 5/8" | Finished Bore | €41.36 | |
 |
50A17 | 17 | 3.4014" | 3.718" | 0.343" | - | 50 | 5/8" | Finished Bore | €42.75 | |
 |
50A18 | 18 | 3.5992" | 3 23/25" | 0.343" | - | 50 | 5/8" | Finished Bore | €43.29 |
