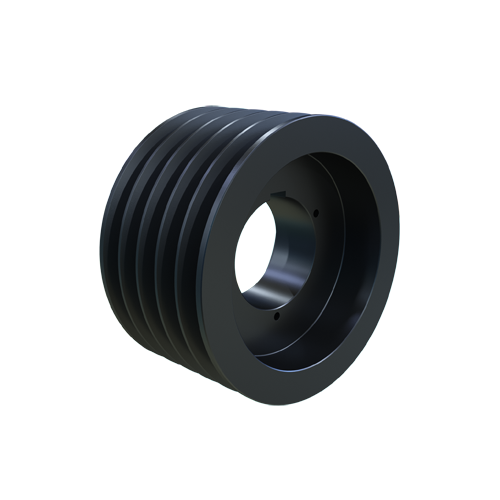

MARTIN SPROCKET 5 C 94 R Sheave, MST Bushing, 9.8 Inch Outside Dia., 5 Groove, 9.4 Inch Pitch Dia., Cast Iron
Get it by Tuesday, Sep 1
€861.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | C |
| Bushing Size | R1 |
| Bushing Style | Mst |
| Face Width | 5 1/4" |
| Material | Cast Iron |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Grooves | 5 |
| Outside Dia. | 9 4/5" |
| Pitch Dia. | 9 2/5" |
| Product Datasheet | martin-sprocket-1-b-250-q.pdf |
| Sheave Construction | Web |
Shipping Info:
| Ship weight (kg) | 16.11 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 24.89 |
| Ship width (cm) | 24.89 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Face Width | Material | Price | |
|---|---|---|---|---|---|---|---|
 |
5 C 90 R | 9 2/5" | 9" | 5 1/4" | Cast Iron | €837.20 | |
|
5 C 102 Q | 10 3/5" | 10 1/5" | 5 1/4" | Cast Iron | €1,064.31 | |
 |
5 C 96 Q | 10" | 9 3/5" | 5 1/4" | Cast Iron | €994.46 | |
|
5 C 98 R | 10 1/5" | 9 4/5" | 5 1/4" | Cast Iron | €892.42 | |
 |
5 C 100 Q | 10 2/5" | 10" | 5 1/4" | Cast Iron | €1,006.74 | |
 |
5 C 360 R | 36.4" | 36" | 5 1/4" | Cast Iron | €3,894.69 | |
|
5 C 76 Q | 8" | 7 3/5" | 5 1/4" | Cast Iron | €718.09 |
