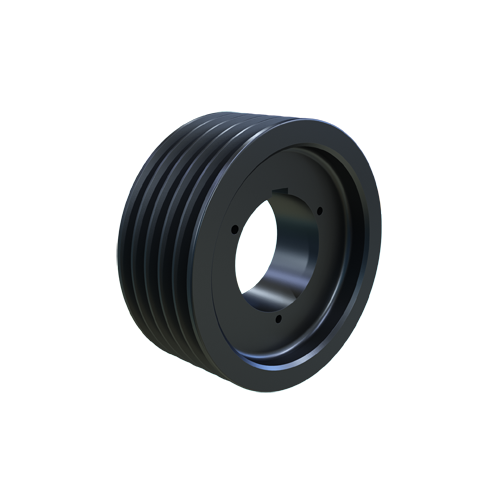

MARTIN SPROCKET 5 5V 900 R Sheave, MST Bushing, 9 Inch Outside Dia., 5 Groove, 8.9 Inch Pitch Dia., Cast Iron
9"
Get it by Tuesday, Sep 1
€660.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | 5V |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Size | R1 |
| Bushing Style | Mst |
| Bushing Type | MST R1 |
| Face Width | 3 3/4" |
| Material | Cast Iron |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Grooves | 5 |
| Pitch Dia. | 8.9" |
| Sheave Construction | Web |
| Suitable For Use With | 5V Cross Section Belts |
| Type | Type J Web |
Shipping Info:
| Ship weight (kg) | 11.43 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Material | Pitch Dia. | Type | Face Width | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
5 5V 1090 R | 10.9" | Cast Iron | 10 4/5" | - | 3 3/4" | - | €734.65 | |
 |
5 5V 1180 R | 11 4/5" | Cast Iron | 11.7" | - | 3 3/4" | - | €802.26 | |
 |
5 5V 490 Q | 4.9" | Steel | 4 4/5" | - | 3 3/4" | - | €344.52 | |
 |
5 5V 1500 R | 15" | Cast Iron | 14.9" | - | 3 3/4" | - | €1,232.99 | |
 |
5 5V 1250 R | 12 1/2" | Cast Iron | 12 2/5" | - | 3 3/4" | - | €919.22 | |
 |
5 5V 1600 R | 16" | Cast Iron | 15.9" | - | 3 3/4" | - | €1,294.55 | |
 |
5 5V 2120 S | 21.2" | Cast Iron | 21.1" | - | 3 3/4" | - | €1,653.88 |
