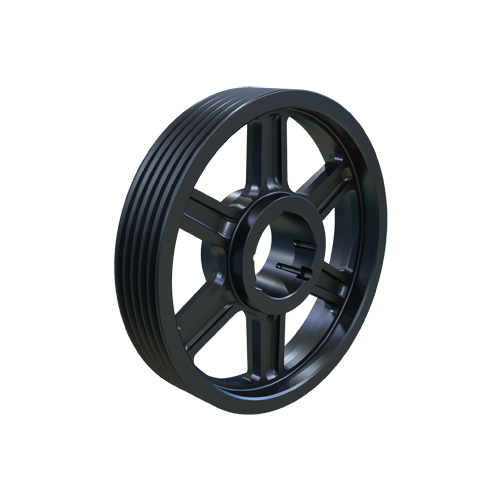

MARTIN SPROCKET 5 5V 1870 TB Sheave, TB Bushing, 18.7 Inch Outside Dia., 5 Groove, 18.6 Inch Pitch Dia., Cast Iron
18.7"
Get it by Monday, Aug 31
€1,134.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 1 1/2" to 3 1/4" |
| Bore Type | TB Bushed |
| Bushing Type | 3535 |
| Color | Gray |
| Face Width | 3 3/4" |
| Length | 3 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 5 |
| Pitch Dia. | 18 3/5" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Arm, Spoke Type A-3 |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 47.5 |
| Ship width (cm) | 47.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Bore Dia. | Pitch Dia. | Face Width | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
5 5V 710 TB | 7.1" | Type A Solid | 15/16" to 2 3/4" | 7" | 3 3/4" | Cast Iron | - | €378.18 | |
 |
5 5V 750 TB | 7 1/2" | Solid Type A-1 | 15/16" to 2 3/4" | 7 2/5" | 3 3/4" | Cast Iron | Gray | €416.00 | |
 |
5 5V 800 TB | 8" | Solid | 0.938" to 3" | 7.9" | 3 3/4" | Cast Iron | - | €443.41 | |
|
5 5V 850 TB | 8 1/2" | Solid Type A-1 | 15/16" to 2 3/4" | 8 2/5" | 3 3/4" | Cast Iron | Gray | €449.09 | |
|
5 5V 900 TB | 9" | Solid Type A-1 | 15/16" to 2 3/4" | 8.9" | 3 3/4" | Cast Iron | Gray | €468.00 | |
 |
5 5V 925 TB | 9 1/4" | Solid Type A-1 | 0.938" to 3" | 9.15" | 3 3/4" | Cast Iron | - | €486.89 | |
 |
5 5V 975 TB | 9 3/4" | Solid Type A-1 | 15/16" to 2 3/4" | 9.65" | 3 3/4" | Cast Iron | Gray | €524.71 |
