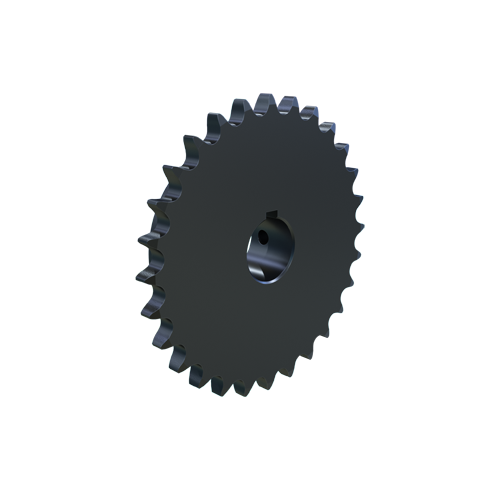

MARTIN SPROCKET 40BS28HT 1 Roller Chain Sprocket, 1 Inch Bore, 4.738 Inch Outside Dia. Steel, Hardened
Item: AJ9HCWModel: 40BS28HT 1
7 In Stock
4.738"
1"
Ships within 2 days via
€125.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1" |
| Bore Size | 1" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 3 1/4" |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 1" |
| No. Of Teeth | 28 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 28 |
| Outside Dia. | 4.738" |
| Pitch | 1/2" |
| Pitch Dia. | 4.4657" |
| Pitch Diameter | 4.466" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 13/16" |
| Storage Dimension Width | 4 13/16" |
Shipping Info:
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 12.04 |
| Ship width (cm) | 12.04 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

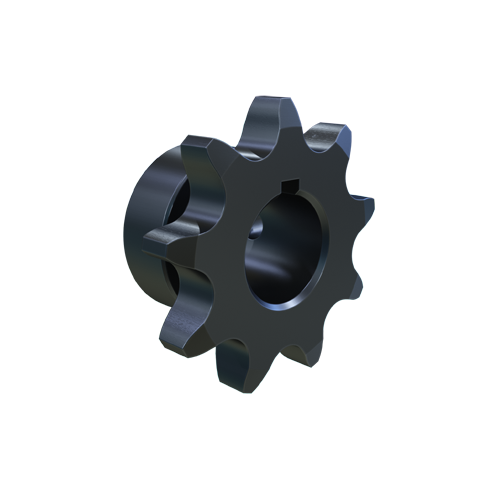

40BS9HT 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | €44.55 | |
 |
40BS10HT 1/2 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (2) 90° Apart (No Keyway) | 1/2" | 1/2" | €47.07 | |
 |
40BS10HT 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | €47.07 | |
 |

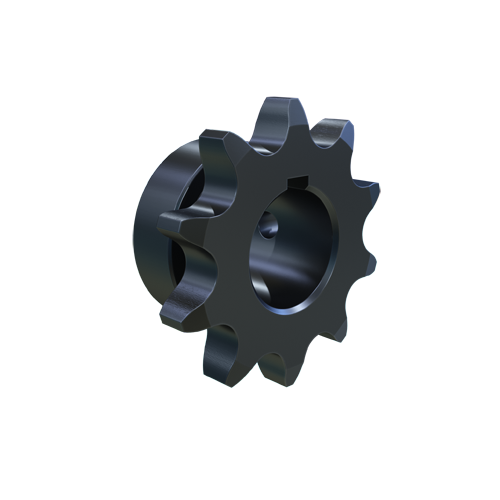

40BS10HT 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | €47.07 | |
 |

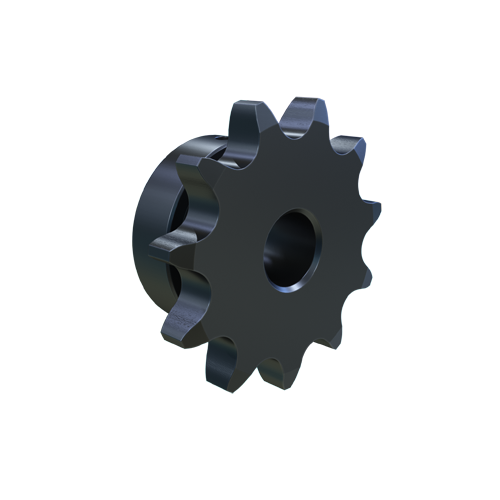

40BS11HT 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (1) Over Keyway And (1) At 90° | 1/2" | 1/2" | €49.62 | |
 |

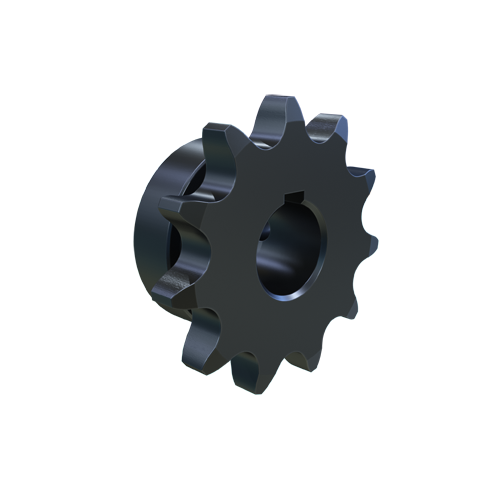

40BS11HT 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | €49.62 | |
 |

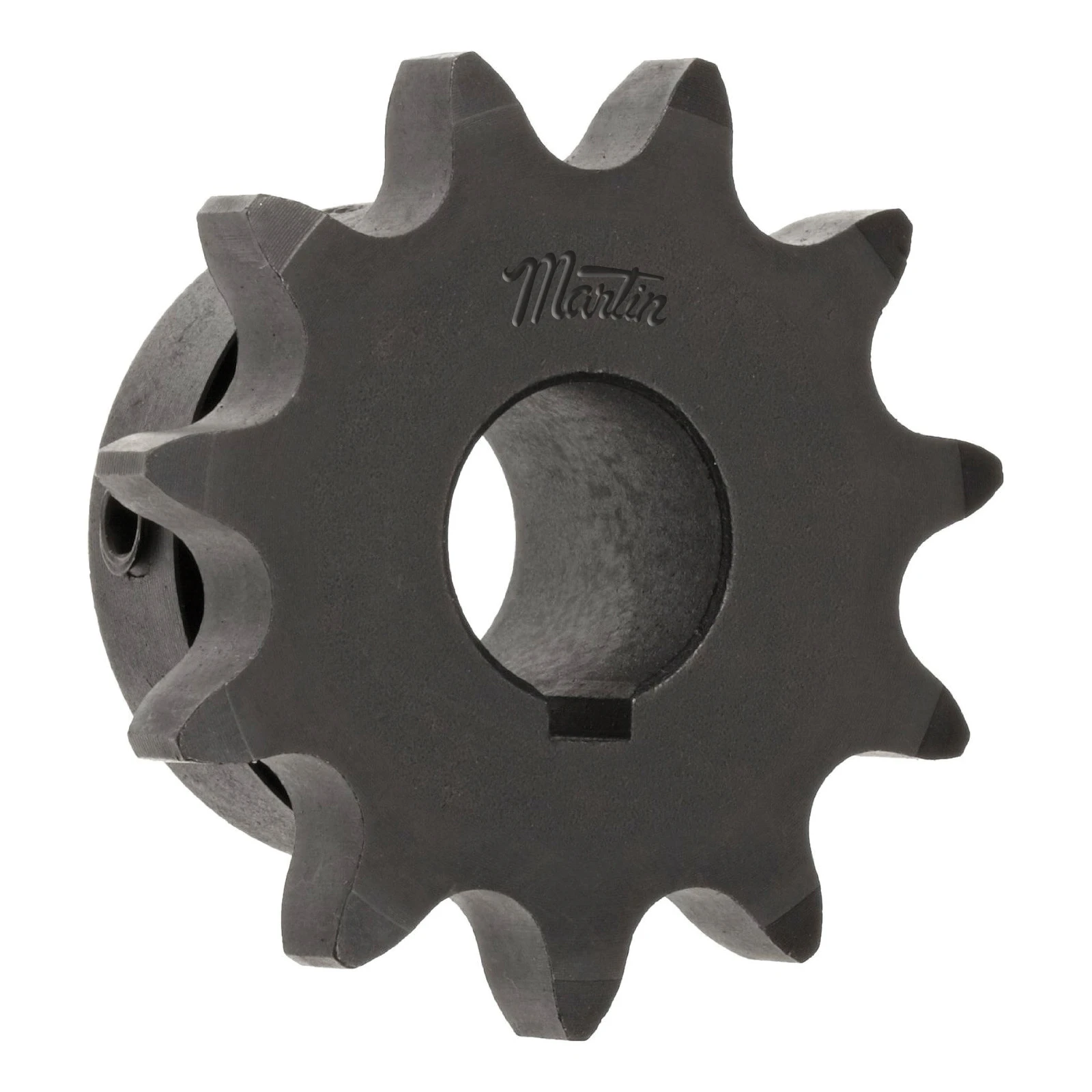

40BS11HT 3/4 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | €49.62 |
