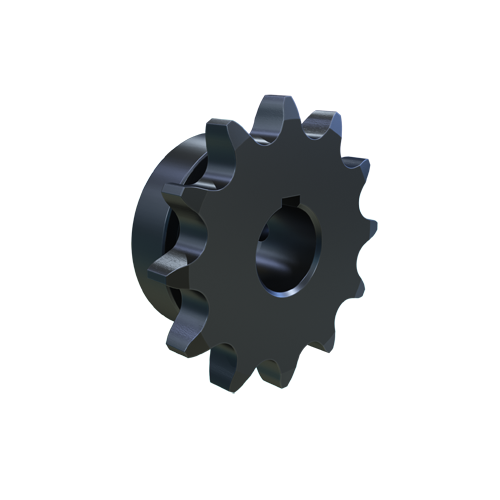

MARTIN SPROCKET 40BS12HT 5/8 Roller Chain Sprocket, 0.625 Inch Bore, 2.166 Inch Outside Dia. Steel, Hardened
Item: AJ9GWKModel: 40BS12HT 5/8
7 In Stock
2.166"
0.625"
Ships within 2 days via
€54.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 5/8" |
| Bore Size | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid With Recess |
| Construction Type | Solid With Recess |
| Finished Bore Size | 5/8" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 1 9/16" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 5/8" |
| No. Of Teeth | 12 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 12 |
| Outside Dia. | 2.166" |
| Pitch | 1/2" |
| Pitch Dia. | 1.9319" |
| Pitch Diameter | 1.932" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 2 9/16" |
| Storage Dimension Width | 2 9/16" |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 5.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40BS9HT 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | €44.55 | |
 |
40BS10HT 1/2 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (2) 90° Apart (No Keyway) | 1/2" | 1/2" | €47.07 | |
 |
40BS10HT 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | €47.07 | |
 |
40BS10HT 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | €47.07 | |
 |
40BS11HT 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (1) Over Keyway And (1) At 90° | 1/2" | 1/2" | €49.62 | |
 |
40BS11HT 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | €49.62 | |
 |
40BS11HT 3/4 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | €49.62 |
