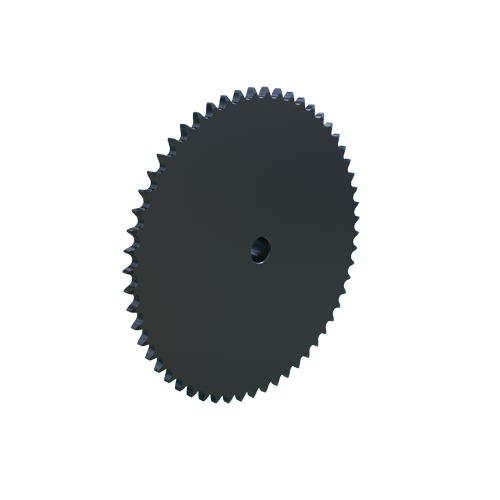

MARTIN SPROCKET 40B56 Sprocket, 40 Chain, 56 Teeth, 8.917 Inch Pitch Dia., 9.203 Inch O.D., Steel
Item: AJ9CWEModel: 40B56
7 In Stock
9.203"
Ships within 2 days via
€108.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 3/4" to 2 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 1/8" |
| Length Thru Bore | 1 1/8" |
| Material | Steel |
| Max. Bore Size | 2 3/8" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 56 |
| Outside Dia. | 9.203" |
| Pitch | 1/2" |
| Pitch Dia. | 8.9174" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/8" |
| Storage Dimension Length | 9 1/5" |
| Storage Dimension Width | 9 1/5" |
| Type | Type B Single Strand Welded Reboreable |
Shipping Info:
| Ship weight (kg) | 3.14 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 23.37 |
| Ship width (cm) | 23.37 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Hub Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40B8 | Steel | 1.3066" | 8 | 7/8" | 1 15/16" | 1 15/16" | 15/16" | 0.984" | €23.84 | |
 |
40B9 | Steel | 1.462" | 9 | 7/8" | 1 15/16" | 1 15/16" | 15/16" | 1 1/16" | €24.93 | |
 |
40B10 | Steel | 1.618" | 10 | 7/8" | 1 15/16" | 1 15/16" | 15/16" | 1 1/4" | €25.49 | |
 |
40B11 | Steel | 1.775" | 11 | 7/8" | 2 9/16" | 2 9/16" | 15/16" | 1 3/8" | €27.97 | |
 |
40B12 | Steel | 1.932" | 12 | 7/8" | 2 9/16" | 2 9/16" | 15/16" | 1 9/16" | €29.88 | |
 |
40B13 | Steel | 2.089" | 13 | 7/8" | 2 9/16" | 2 9/16" | 15/16" | 1 9/16" | €30.42 | |
 |
40B14 | Steel | 2.247" | 14 | 7/8" | 2 9/16" | 2 9/16" | 15/16" | 1 11/16" | €30.42 |
