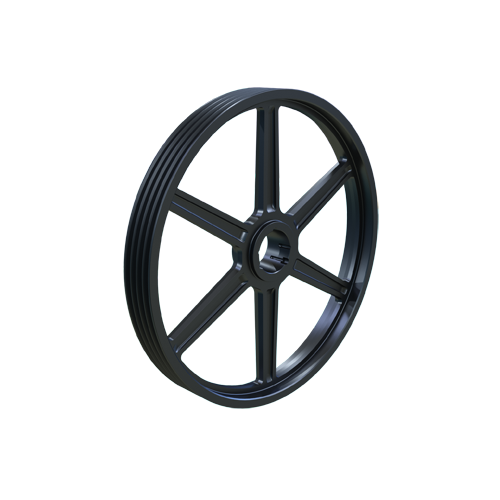

MARTIN SPROCKET 4 C 360 TB Sheave, TB Bushing, 36.4 Inch Outside Dia., 4 Groove, 36 Inch Pitch Dia., Cast Iron
36.4"
Get it by Wednesday, Aug 26
€2,699.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bore Dia. | 1 1/2" to 3 1/4" |
| Bore Type | Bushed |
| Bushing Type | TB 3535 |
| Face Width | 4 3/8" |
| Length | 3 1/2" |
| Material | Cast Iron |
| No. Of Grooves | 4 |
| Pitch Dia. | 36" |
| Suitable For Use With | C Cross Section Belt |
| Type | Type A Arm, Spoke |
Shipping Info:
| Ship weight (kg) | 77.04 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 92.46 |
| Ship width (cm) | 92.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Bore Dia. | Pitch Dia. | Face Width | Material | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
4 C 70 TB | 7 2/5" | Solid Type A-1 | 1/2" to 2 1/2" | 7" | 4 3/8" | Cast Iron | Gray | €392.35 | |
 |
4 C 75 TB | 7.9" | Solid Type A-1 | 1/2" to 2 1/2" | 7 1/2" | 4 3/8" | Cast Iron | Gray | €406.53 | |
 |
4 C 80 TB | 8 2/5" | Solid Type A-1 | 1/2" to 2 1/2" | 8" | 4 3/8" | Cast Iron | Gray | €463.26 | |
 |
4 C 85 TB | 8.9" | Type A-2 Web | 1/2" to 2 1/2" | 8 1/2" | 4 3/8" | Cast Iron | Gray | €491.64 | |
 |
4 C 90 TB | 9 2/5" | Type A-2 Web | 1/2" to 2 1/2" | 9" | 4 3/8" | Cast Iron | - | €529.45 | |
 |
4 C 95 TB | 9.9" | Type A-2 Web | 1/2" to 2 1/2" | 9 1/2" | 4 3/8" | Cast Iron | Gray | €538.92 | |
|
4 C 100 TB | 10 2/5" | Type A-2 Web | 1/2" to 2 1/2" | 10" | 4 3/8" | Cast Iron | Gray | €567.27 |
