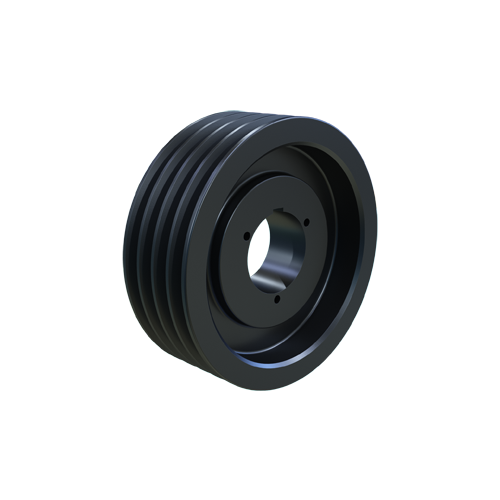

MARTIN SPROCKET 4 B 90 Q Sheave, MST Bushing, 9.350 Inch Outside Dia., 4 Groove, 9 Inch Pitch Dia., Cast Iron
9.350"
Get it by Thursday, Aug 27
€437.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | B |
| Bushing Size | Q1 |
| Bushing Style | Mst |
| Face Width | 3 1/4" |
| Material | Cast Iron |
| Max. Bore Size | 2.688" |
| Min. Bore Size | 3/4" |
| No. Of Grooves | 4 |
| Outside Dia. | 9.35" |
| Pitch Dia. | 9" |
| Product Datasheet | martin-sprocket-1-b-250-q.pdf |
| Sheave Construction | Arm, Spoke |
Shipping Info:
| Ship weight (kg) | 9.27 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 23.75 |
| Ship width (cm) | 23.75 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Material | Pitch Dia. | Type | Face Width | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
4 B 62 Q | 6.55" | Steel | 6 1/5" | - | 3 1/4" | - | €278.05 | |
 |
4 B 136 Q | 13.95" | Cast Iron | 13 3/5" | - | 3 1/4" | - | €644.22 | |
 |
4 B 154 R | 15 3/4" | Cast Iron | 15 2/5" | - | 3 1/4" | - | €611.55 | |
 |
4 B 184 R | 18 3/4" | Cast Iron | 18 2/5" | - | 3 1/4" | - | €722.21 | |
 |
4 B 200 R | 20.35" | Cast Iron | 20" | - | 3 1/4" | - | €1,042.33 | |
 |
4 B 42 P | 4.55" | Cast Iron | 4 1/5" | - | 3 1/4" | - | €255.38 | |
 |
4 B 58 Q | 6.15" | Steel | 5 4/5" | - | 3 1/4" | - | €265.81 |
