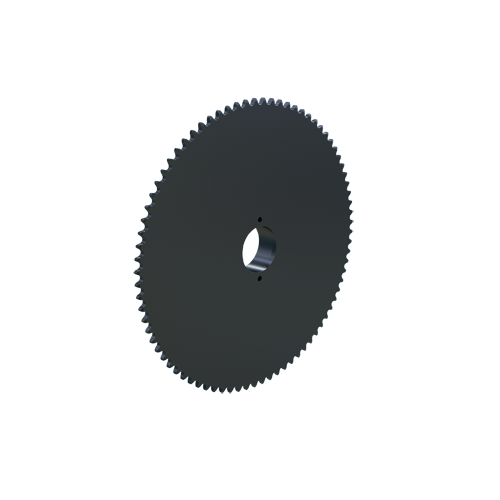

MARTIN SPROCKET 35H80 Sprocket, MST, 35 Chain, 80 Teeth, 9.552 Inch Pitch Dia., 9.769 Inch O.D., Steel
Item: AL4QPJModel: 35H80
7 In Stock
9.769"
Ships within 2 days via
€234.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 3/8" to 1 1/2" |
| Bore Type | Bushed |
| Bushing Part Number | H |
| Bushing Size | H |
| Bushing Type | Type H Split Taper |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | 35 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Dia. | 2 1/2" |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 80 |
| Outside Dia. | 9.769" |
| Pitch | 3/8" |
| Pitch Dia. | 9.5518" , 9.552" |
| Single Strand Tooth Thickness | 0.154" |
| Storage Dimension Height | 0.87" |
| Storage Dimension Length | 9.769" |
| Storage Dimension Width | 9.769" |
| Type | MST H Bushed Type 3 Welded |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 24.82 |
| Ship width (cm) | 24.82 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Single Strand Tooth Thickness | Storage Dimension Height | Construction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35H21 | 2.5161" | 21 | 7/8" | 2.713" | 2.713" | 0.168" | 22/25" | Solid With Recess Groove | €90.81 | |
|
35H23 | 2.754" | 23 | 7/8" | 2.953" | 2.953" | 0.168" | 22/25" | Solid With Recess Groove | €103.01 | |
 |
35H26 | 3.1111" | 26 | 7/8" | 3.313" | 3.313" | 0.168" | 22/25" | Solid | €113.08 | |
 |
35H30 | 3.5875" | 30 | 7/8" | 3 7/8" | 3 7/8" | 0.168" | 15/16" | Solid | €111.79 | |
 |
35H32 | 3.826" | 32 | 1 1/4" | 4 5/16" | 4 5/16" | 0.168" | 15/16" | Solid | €117.71 | |
 |
35H35 | 4.183" | 35 | 1 1/4" | 4 3/4" | 4 3/4" | 0.168" | 15/16" | Solid | €121.37 | |
|
35H36 | 4.3026" | 36 | 7/8" | 4 3/4" | 4 3/4" | 0.168" | 15/16" | Solid | €127.83 |
