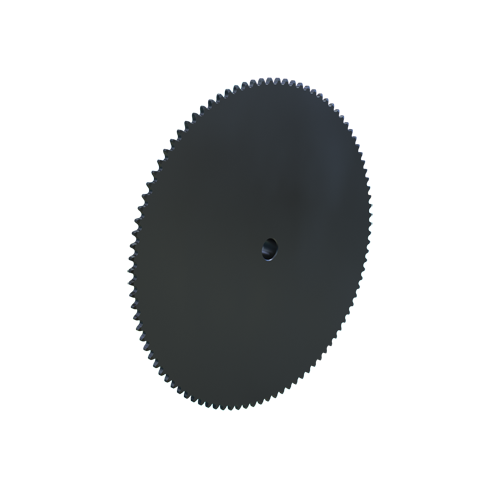

MARTIN SPROCKET 35B96 Roller Chain Sprocket, 35 Chain, Stock Bore, 96 Teeth, 11.461 Inch Pitch Dia., Steel
Item: AJ8UCYModel: 35B96
7 In Stock
11.461"
Ships within 2 days via
€133.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 96 |
| Outside Dia. | 11 17/25" |
| Outside Diameter | 11.68" |
| Pitch | 3/8" |
| Pitch Dia. | 11.4612" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 11 17/25" |
| Storage Dimension Width | 11 17/25" |
Shipping Info:
| Ship weight (kg) | 2.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 29.67 |
| Ship width (cm) | 29.67 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35B8 | 8 | 0.9799" | 1.13" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €19.47 | |
 |
35B9 | 9 | 1.0964" | 1.255" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €20.02 | |
 |
35B10 | 10 | 1.2135" | 1.379" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €21.38 | |
 |
35B11 | 11 | 1.331" | 1.502" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €21.93 | |
 |
35B12 | 12 | 1.4489" | 1 5/8" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €23.02 | |
 |
35B13 | 13 | 1.567" | 1.746" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €23.84 | |
 |
35B14 | 14 | 1.6852" | 1.868" | 3/4" | 35 | 3/8" | 3/8" | Finished Bore | €24.93 |
