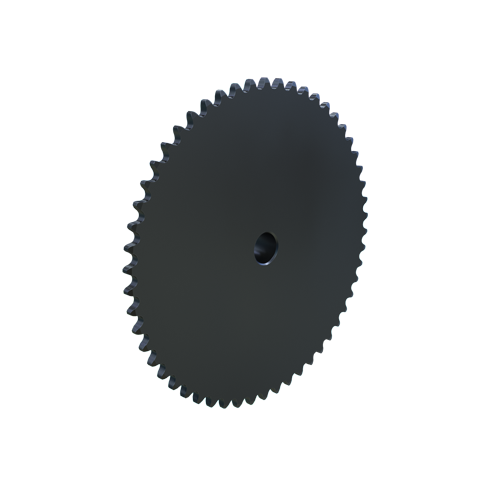

MARTIN SPROCKET 35B54 Sprocket, Stock Bore, 35 Chain, 54 Teeth, 6.449 Inch Pitch Dia., 6.664 Inch O.D., Steel
Item: AJ8UCJModel: 35B54
7 In Stock
6.664"
Ships within 2 days via
€88.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 5/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Dia. | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 5/8" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 54 |
| Outside Dia. | 6.664" |
| Pitch | 3/8" |
| Pitch Dia. | 6.449" , 6.4494" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 6.664" |
| Storage Dimension Width | 6.664" |
| Type | Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16.92 |
| Ship width (cm) | 16.92 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35B8 | 3/8" | 0.9799" | 1.13" | 3/4" | 3/4" | 35 | 3/8" | 3/8" | €19.47 | |
 |
35B9 | 3/8" | 1.0964" | 1.255" | 0.844" | 3/4" | 35 | 3/8" | 3/8" | €20.02 | |
 |
35B10 | 3/8" | 1.214" | 1.379" | 0.969" | 3/4" | 35 | 3/8" | 3/8" | €21.38 | |
 |
35B11 | 3/8" | 1.331" | 1.502" | 1.063" | 3/4" | 35 | 3/8" | 3/8" | €21.93 | |
 |
35B12 | 1/2" | 1.4489" | 1 5/8" | 1.219" | 3/4" | 35 | 3/8" | 3/8" | €23.02 | |
 |
35B13 | 1/2" | 1.567" | 1.746" | 1 1/4" | 3/4" | 35 | 3/8" | 3/8" | €23.84 | |
 |
35B14 | 1/2" | 1.685" | 1.868" | 1 1/4" | 3/4" | 35 | 3/8" | 3/8" | €24.93 |
