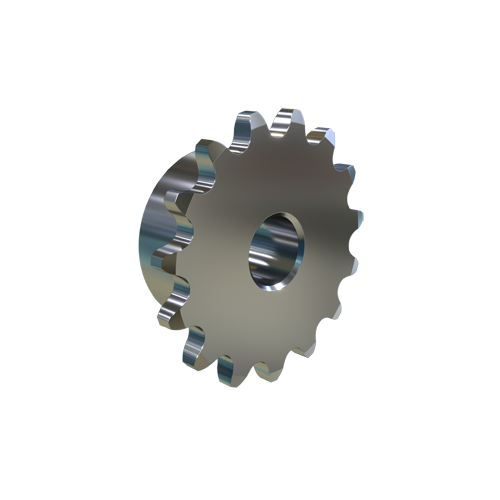

MARTIN SPROCKET 35B15SS Roller Chain Sprocket, 35 Chain, 15 Teeth, 1.804 Inch Pitch Dia., 1.989 Inch O.D., SS
Item: AJ9AZJModel: 35B15SS
7 In Stock
1.989"
Ships within 2 days via
€152.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1/2" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Dia. | 1.344" |
| Hub Outside Dia. | 1.3438" |
| Individually Packaged | No |
| Length Through Bore | 3/4" |
| Length Thru Bore | 3/4" |
| Material | Stainless Steel |
| Max. Bore Size | 7/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 15 |
| Outside Dia. | 1.989" |
| Pitch | 3/8" |
| Pitch Dia. | 1.804" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 2.11" |
| Storage Dimension Width | 2.11" |
| Type | Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 5.05 |
| Ship width (cm) | 5.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35B8 | Steel | 0.9799" | 8 | 3/4" | 3/4" | 3/8" | 1.131" | 1.131" | €19.47 | |
 |
35B9 | Steel | 1.0964" | 9 | 3/4" | 0.844" | 3/8" | 1 1/2" | 1 1/2" | €20.02 | |
 |
35B10 | Steel | 1.214" | 10 | 3/4" | 0.969" | 3/8" | 1 1/2" | 1 1/2" | €21.38 | |
 |
35B11 | Steel | 1.331" | 11 | 3/4" | 1.063" | 3/8" | 1 15/16" | 1 15/16" | €21.93 | |
 |
35B12 | Steel | 1.4489" | 12 | 3/4" | 1.219" | 1/2" | 1 15/16" | 1 15/16" | €23.02 | |
 |
35B13 | Steel | 1.567" | 13 | 3/4" | 1 1/4" | 1/2" | 1 15/16" | 1 15/16" | €23.84 | |
 |
35B14 | Steel | 1.685" | 14 | 3/4" | 1 1/4" | 1/2" | 1 15/16" | 1 15/16" | €24.93 |
