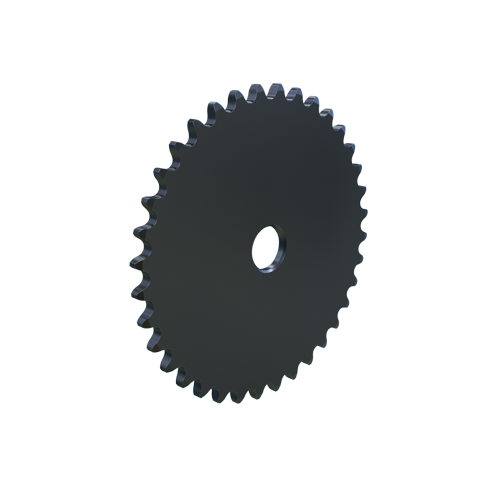

MARTIN SPROCKET 35A36 Roller Chain Sprocket, 35 Chain, Stock Bore, 36 Teeth, 4.303 Inch Pitch Dia., Steel
Item: AJ8REVModel: 35A36
7 In Stock
4.303"
Ships within 2 days via
€40.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 5/8" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 5/8" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | A |
| Hub Diameter | 2 1/4" |
| Individually Packaged | No |
| Length Through Bore | 0.168" |
| Length Thru Bore | 0.1545" |
| Material | Steel |
| Min. Bore Size | 5/8" |
| No. Of Teeth | 36 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 36 |
| Outside Dia. | 4.511" |
| Pitch | 3/8" |
| Pitch Dia. | 4.3026" |
| Pitch Diameter | 4.303" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 0.168" |
| Storage Dimension Length | 4.511" |
| Storage Dimension Width | 4.511" |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 0.43 |
| Ship length (cm) | 11.46 |
| Ship width (cm) | 11.46 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35A15 | 15 | 1.8037" | 1.989" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €30.42 | |
 |
35A16 | 16 | 1.9222" | 2.11" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €30.42 | |
 |
35A17 | 17 | 2.0408" | 2.231" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €31.80 | |
 |
35A18 | 18 | 2 4/25" | 2.352" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €31.80 | |
 |
35A19 | 19 | 2.2783" | 2.472" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €32.34 | |
 |
35A20 | 20 | 2.3972" | 2.593" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €33.41 | |
 |
35A21 | 21 | 2.5161" | 2.713" | 0.168" | 35 | 3/8" | 3/8" | Finished Bore | €33.41 |
