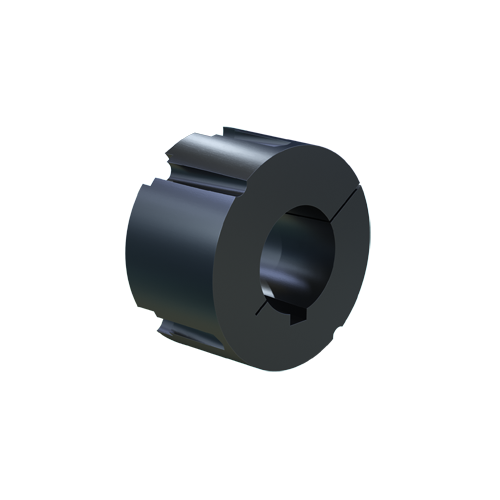

MARTIN SPROCKET 3525 2 1/4 Taper Bushing, 2.250 Inch Bore, 1/2 x 1/4 Inch Key, 2.5 Inch Length, Cast Iron
2 1/4"
Get it by Friday, Aug 28
€172.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Taper Bushing |
| Barrel Dia. | 5" |
| Bolt Circle Dia. | 4.83" |
| Bore Dia. | 2 1/4" |
| Hub Dia. | 7" |
| Key Way Size | 1/2" x 1/4" |
| Length | 2 1/2" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Screw Size | 1/2"-13 x 1 1/2" |
| Suitable For Use With | Taper Bushed Parts |
| Taper | 8° |
| Torque | 44800 lbs.-in. |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 5.45 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Key Way Size | Screw Size | Material | Type | Bolt Circle Dia. | Torque | No. Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3525 2 1/2 | 2 1/2" | 5/8" x 5/16" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
 |
3525 2 3/4 | 2 3/4" | 5/8" x 5/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
|
3525 2 5/8 | 2 5/8" | 5/8" x 5/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
 |
3525 2 15/16 | 2 15/16" | 3/4" x 3/8" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
|
3525 2 3/16 | 2 3/16" | 1/2" x 1/4" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
 |
3525 1 11/16 | 1 11/16" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
 |
3525 2 | 2" | 1/2" x 1/4" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 |
