MARTIN SPROCKET 3525 Taper Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P| Style | Model | Bore Dia. | Key Way Size | Screw Size | Material | Type | Bolt Circle Dia. | Torque | No. Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3525 1 1/2 | 1 1/2" | 3/8" x 3/16" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| B | 3525 1 3/8 | 1 3/8" | 5/16" x 5/32" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 1 5/8 | 1 5/8" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| D | 3525 1 5/16 | 1 5/16" | 5/16" x 5/32" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| E | 3525 1 7/8 | 1 7/8" | 1/2" x 1/4" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |

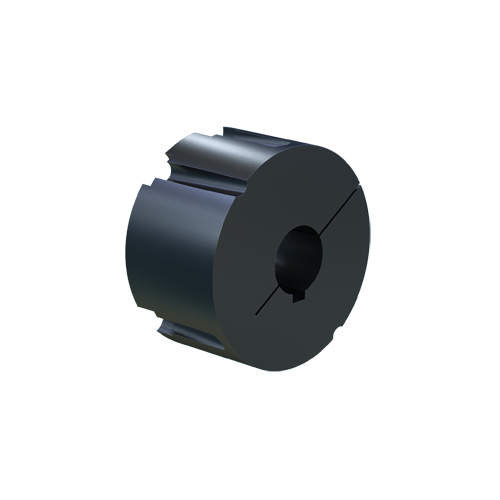

| F | 3525 1 7/16 | 1 7/16" | 3/8" x 3/16" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| G | 3525 1 11/16 | 1 11/16" | 3/8" x 3/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 1 15/16 | 1 15/16" | 1/2" x 1/4" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |

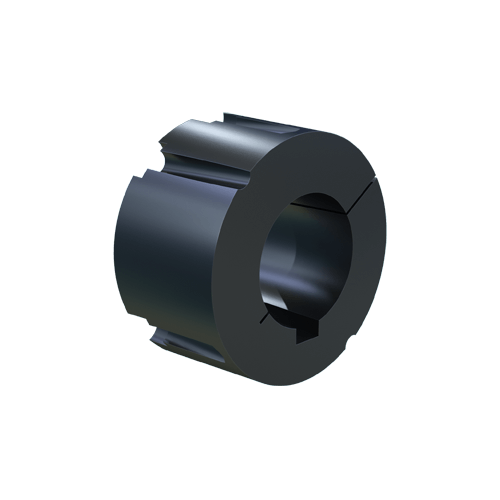

| H | 3525 2 1/2 | 2 1/2" | 5/8" x 5/16" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| I | 3525 2 1/4 | 2 1/4" | 1/2" x 1/4" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 2 1/8 | 2 1/8" | 1/2" x 1/4" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 2 3/4 | 2 3/4" | 5/8" x 5/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| J | 3525 2 3/8 | 2 3/8" | 5/8" x 5/16" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 2 3/16 | 2 3/16" | 1/2" x 1/4" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 2 5/8 | 2 5/8" | 5/8" x 5/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| K | 3525 2 7/8 | 2 7/8" | 3/4" x 3/8" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| C | 3525 2 7/16 | 2 7/16" | 5/8" x 5/16" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| L | 3525 2 15/16 | 2 15/16" | 3/4" x 3/8" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| M | 3525 2 | 2" | 1/2" x 1/4" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €172.03 | |
| C | 3525 3 1/4 | 3 1/4" | 3/4" x 3/8" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| N | 3525 3 3/8 | 3 3/8" | 7/8" x 1/4" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| C | 3525 3 3/16 | 3 3/16" | 3/4" x 3/8" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| O | 3525 3 7/16 | 3 7/16" | 7/8" x 1/4" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| P | 3525 3 15/16 | 3 15/16" | 1" x 1/4" | 1/2" x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 | |
| C | 3525 3 | 3" | 3/4" x 3/8" | 1/2"-13 x 1 1/2" | Cast Iron | Standard | 4.83" | 44800 lbs.-in. | 3 | €200.70 |
