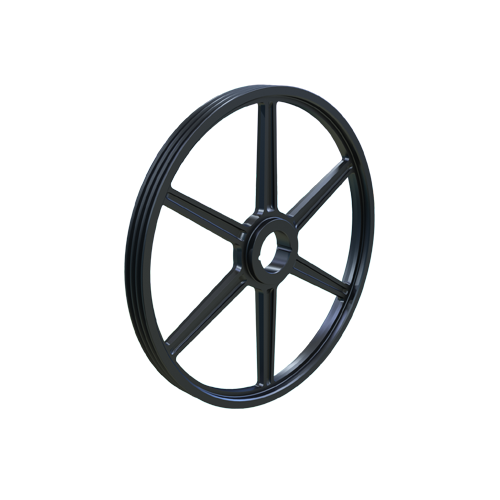

MARTIN SPROCKET 3 B 300 TB Sheave, TB Bushing, 30.350 Inch Outside Dia., 3 Groove, 30 Inch Pitch Dia., Cast Iron
30.350"
Get it by Tuesday, Sep 1
€1,238.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Bore Dia. | 15/16" to 2 3/4" |
| Bore Type | Bushed |
| Bushing Type | TB 3020 |
| Face Width | 2 1/2" |
| Length | 3" |
| Material | Cast Iron |
| No. Of Grooves | 3 |
| Pitch Dia. | 30" |
| Suitable For Use With | A, B Cross Section Belt |
| Type | Type A Arm, Spoke |
Shipping Info:
| Ship weight (kg) | 37.8 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 77.09 |
| Ship width (cm) | 77.09 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Type | Bore Dia. | Material | Pitch Dia. | Face Width | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3 B 34 TB | 3 3/4" | Solid Type A-1 | 0.5" to 1.26" | Steel | 3 2/5" | 2 1/2" | - | €104.94 | |
 |
3 B 36 TB | 3.95" | Solid Type A-1 | 1/2" to 1 1/4" | Steel | 3 3/5" | 2 1/2" | - | €111.09 | |
 |
3 B 38 TB | 4.15" | Solid Type A-1 | 1/2" to 1 5/8" | Steel | 3 4/5" | 2 1/2" | - | €114.40 | |
 |
3 B 40 TB | 4.35" | Solid Type A-1 | 1/2" to 1 5/8" | Steel | 4" | 2 1/2" | - | €120.55 | |
|
3 B 42 TB | 4.55" | Solid Type A-1 | 1/2" to 1 1/2" | Steel | 4 1/5" | 2 1/2" | - | €125.26 | |
|
3 B 44 TB | 4 3/4" | Solid Type A-1 | 1/2" to 1 1/2" | Steel | 4 2/5" | 2 1/2" | - | €132.36 | |
|
3 B 46 TB | 4.95" | Solid Type A-1 | 1/2" to 1 1/2" | Steel | 4 3/5" | 2 1/2" | - | €133.78 |
