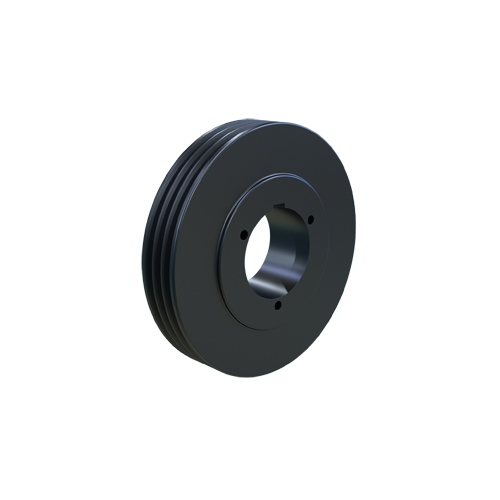

MARTIN SPROCKET 3 3V 800 Q Sheave, MST Bushing, 8 Inch Outside Dia., 3 Groove, 7.95 Inch Pitch Dia., Cast Iron
8"
Get it by Monday, Aug 31
€281.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| Belt Cross Section | 3V |
| Bushing Size | Q1 |
| Bushing Style | Mst |
| Face Width | 1 1/2" |
| Material | Cast Iron |
| Max. Bore Size | 2.688" |
| Min. Bore Size | 3/4" |
| No. Of Grooves | 3 |
| Outside Dia. | 8" |
| Pitch Dia. | 7.95" |
| Product Datasheet | martin-sprocket-1-b-250-q.pdf |
| Sheave Construction | Web |
Shipping Info:
| Ship weight (kg) | 5.36 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 20.32 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Material | Pitch Dia. | Face Width | Price | |
|---|---|---|---|---|---|---|---|
 |

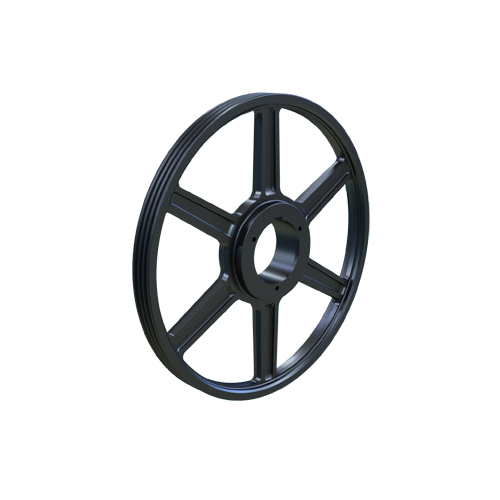

3 3V 1900 R | 19" | Cast Iron | 18.95" | 1 1/2" | €586.86 | |
 |
3 3V 530 P | 5.3" | Steel | 5 1/4" | 1 1/2" | €206.15 | |
 |

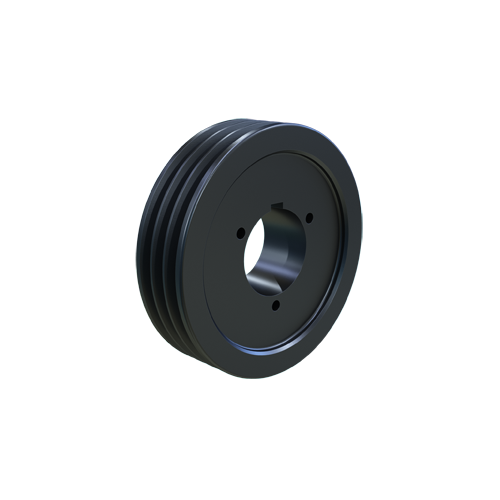

3 3V 560 P | 5 3/5" | Steel | 5.55" | 1 1/2" | €212.36 | |
 |
3 3V 315 H | 3.15" | Steel | 3.1" | 1 1/2" | €150.41 | |
 |

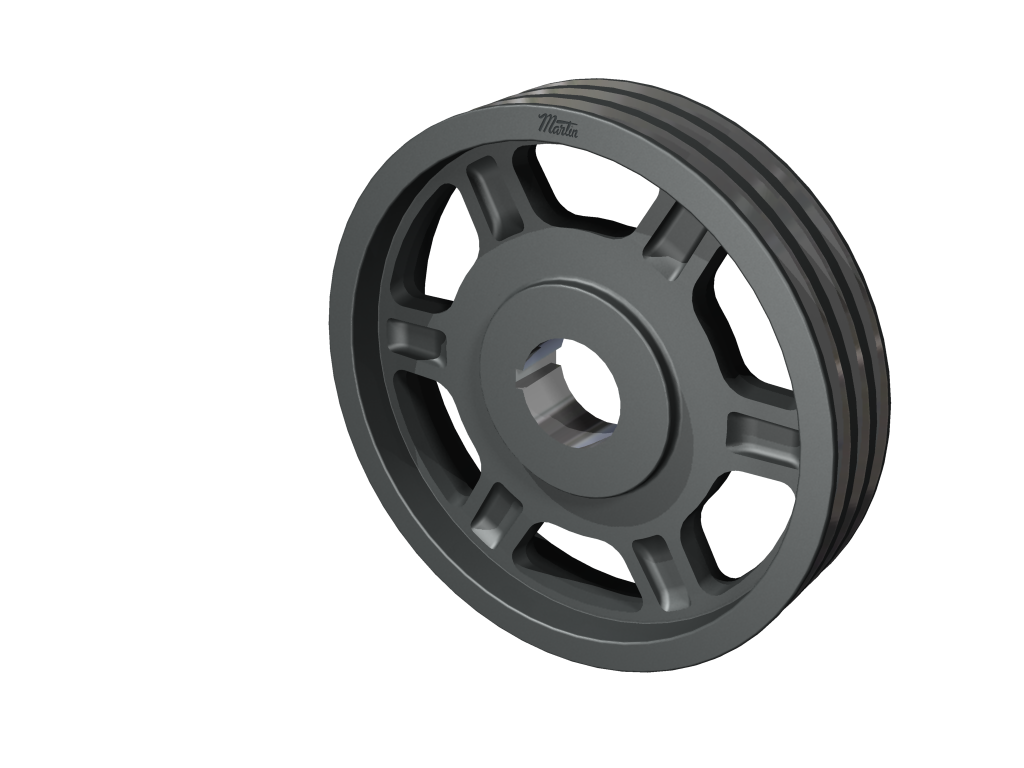

3 3V 2500 R | 25" | Cast Iron | 24.95" | 1 1/2" | €1,152.98 | |
|
3 3V 265 G | 2.65" | Steel | 2 3/5" | 1 1/2" | €128.89 | |
|
3 3V 600 P | 6" | Steel | 5.95" | 1 1/2" | €224.60 |
