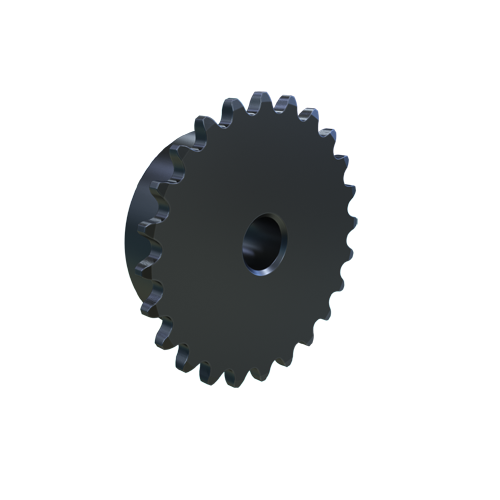

MARTIN SPROCKET 25B24 Sprocket, 25 Chain, 24 Teeth, 1.915 Inch Pitch Dia., 2.049 Inch O.D., Steel
Item: AJ8TXHModel: 25B24
7 In Stock
2.049"
Ships within 2 days via
€33.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 25 |
| Chain Pitch | 1/4" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/8" |
| For Chain Number | 25 |
| For Chain Pitch | 1/4" |
| Hub Configuration | B |
| Hub Diameter | 1 1/2" |
| Hub Outside Dia. | 1 1/2" |
| Length Through Bore | 5/8" |
| Length Thru Bore | 5/8" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 3/8" |
| No. Of Teeth | 24 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 2.049" |
| Pitch | 1/4" |
| Pitch Dia. | 1.9153" |
| Pitch Diameter | 1.915" |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.11" |
| Storage Dimension Height | 13/16" |
| Storage Dimension Length | 2 5/16" |
| Storage Dimension Width | 2 5/16" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 5.21 |
| Ship width (cm) | 5.21 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
25B9 | 9 | 0.731" | 0.837" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €21.93 | |
 |
25B10 | 10 | 0.809" | 0.919" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €22.47 | |
 |
25B11 | 11 | 0.8874" | 1.001" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €23.02 | |
 |
25B12 | 12 | 0.9659" | 1.083" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €23.84 | |
 |
25B14 | 14 | 1.1235" | 1.245" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €25.49 | |
 |
25B15 | 15 | 1.2024" | 1.326" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €25.49 | |
 |
25B16 | 16 | 1.2815" | 1.407" | 1/2" | 25 | 1/4" | Finished Bore | 1/4" | €25.98 |
