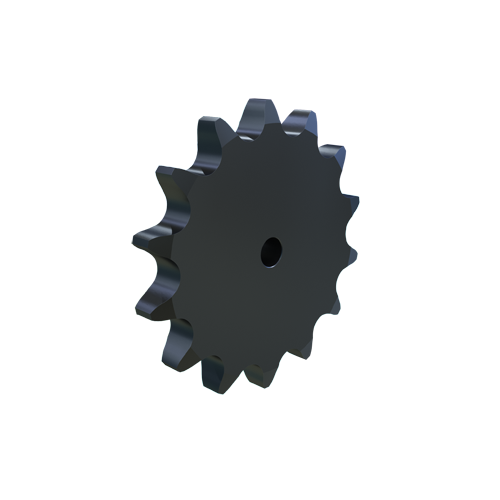

MARTIN SPROCKET 240B14 Sprocket, 240 Chain, 14 Teeth, 13.482 Inch Pitch Dia., 14.944 Inch O.D., Steel
Get it by Friday, Aug 21
€1,312.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" to 5 3/8" |
| Bore Type | Finished Bore |
| Chain Number | 240 |
| Chain Pitch | 3" |
| Chain Size | #240 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 240 |
| For Chain Pitch | 3" |
| Hub Configuration | B |
| Hub Dia. | 7 1/2" |
| Hub Outside Dia. | 7 1/2" |
| Individually Packaged | No |
| Length Through Bore | 3 7/8" |
| Length Thru Bore | 3 7/8" |
| Material | Steel |
| Max. Bore Size | 5 3/8" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 14 |
| Outside Dia. | 14.944" |
| Pitch | 3" |
| Pitch Dia. | 13.4819" |
| Single Strand Tooth Thickness | 1.738" |
| Storage Dimension Height | 3 7/8" |
| Storage Dimension Length | 14.94" |
| Storage Dimension Width | 14.94" |
| Type | Type B Single Strand Welded Reboreable |
Shipping Info:
| Ship weight (kg) | 39.42 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 37.95 |
| Ship width (cm) | 37.95 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
240B10 | 9.7082" | 10 | 3 3/8" | 6 1/2" | 1 1/2" to 4 1/2" | 11.03" | 11.03" | 3 3/8" | €1,061.22 | |
 |
240B11 | 10.6484" | 11 | 3 7/8" | 7" | 1 1/2" to 4 3/4" | 12.02" | 12.02" | 3 7/8" | €1,077.06 | |
 |

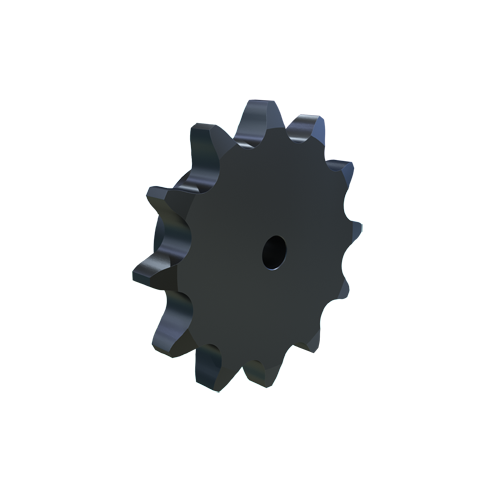

240B12 | 11.5911" | 12 | 3 7/8" | 7 1/2" | 1 1/2" to 5 3/8" | 13" | 13" | 3 7/8" | €1,178.04 | |
|
240B13 | 12.5357" | 13 | 3 7/8" | 7 1/2" | 1 1/2" to 5 3/8" | 13.97" | 13.97" | 3 7/8" | €1,249.72 | |
 |

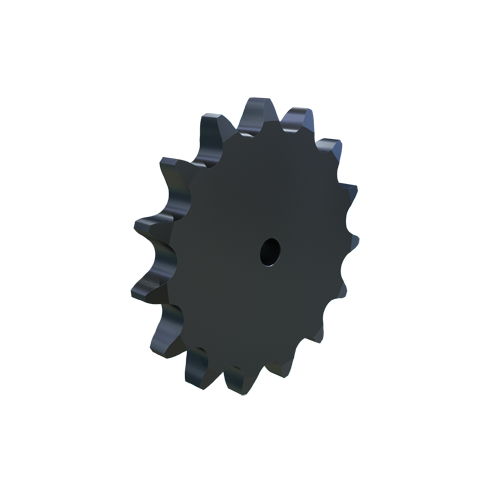

240B15 | 14.4292" | 15 | 3 7/8" | 7 1/2" | 1 1/2" to 5 3/8" | 15.91" | 15.91" | 3 7/8" | €1,406.79 | |
 |

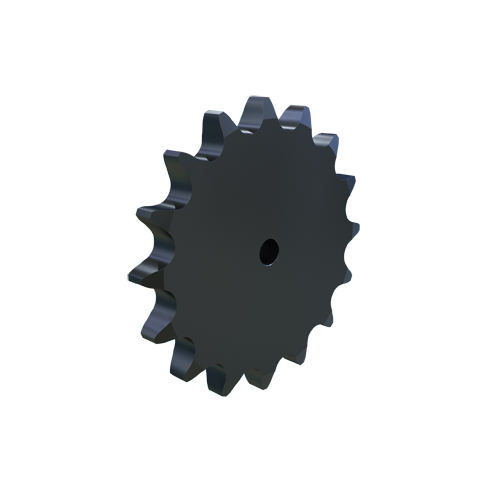

240B16 | 15.3775" | 16 | 4 1/8" | 8" | 1 1/2" to 5 1/2" | 16 22/25" | 16 22/25" | 4 1/8" | €1,597.23 | |
 |

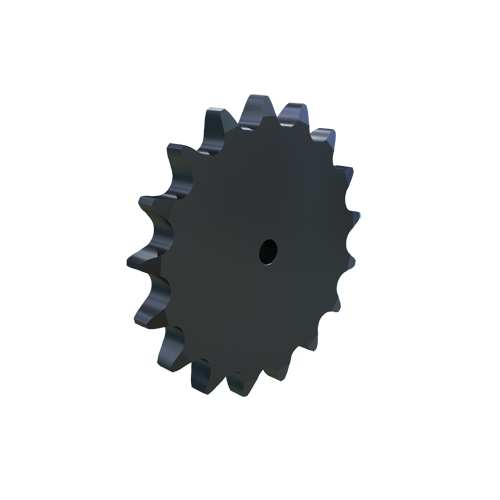

240B17 | 16.3266" | 17 | 4 1/8" | 8" | 1 1/2" to 5 1/2" | 17.85" | 17.85" | 4 1/8" | €1,707.62 |
