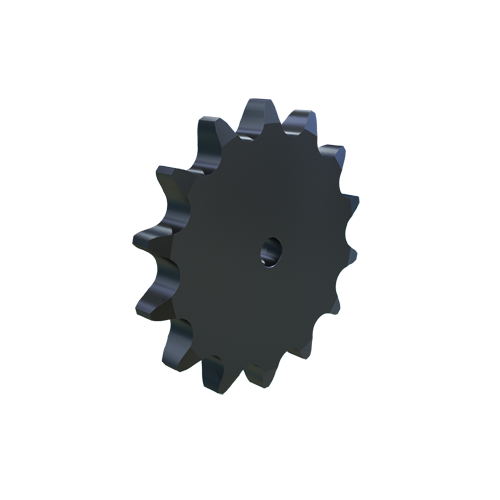

MARTIN SPROCKET 240A14 Sprocket, 240 Chain, 14 Teeth, 13.482 Inch Pitch Dia., 14.944 Inch O.D., Steel
Get it by Monday, Aug 24
€1,129.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1.5" to 10.114" |
| Bore Type | Finished Bore |
| Chain Number | 240 |
| Chain Pitch | 3" |
| Chain Size | #240 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 240 |
| For Chain Pitch | 3" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 1.6945" , 1.738" |
| Material | Steel |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 14 |
| Outside Dia. | 14.944" |
| Pitch | 3" |
| Pitch Dia. | 13.4819" |
| Single Strand Tooth Thickness | 1.738" |
| Storage Dimension Height | 1.738" |
| Storage Dimension Length | 14.944" |
| Storage Dimension Width | 14.944" |
| Type | Type A Single Strand Solid Reboreable |
Shipping Info:
| Ship weight (kg) | 27.32 |
| Ship height (cm) | 4.41 |
| Ship length (cm) | 37.95 |
| Ship width (cm) | 37.95 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
240A21 | 20.1285" | 21 | 1.6945" | 1.5" to 16.874" | #240 | 21.704" | 21.704" | Steel | €1,882.49 | |
 |
240A60 | 57.322" | 60 | 1.6945" | 1.5" to 54.213" | #24 | 59 1/25" | 59 1/25" | Steel | €11,160.77 | |
 |
240A19 | 18.2266" | 19 | 1.6945" | 1.5" to 14.948" | #240 | 19.778" | 19.778" | Steel | €1,644.39 | |
 |
240A40 | 38.2365" | 40 | 1.6945" | 1.5" to 35.089" | #240 | 39.919" | 39.919" | Steel | €5,604.99 | |
 |
240A15 | 14.4292" | 15 | 1.6945" | 1.5" to 11.084" | #240 | 15.914" | 15.914" | Steel | €1,154.84 | |
 |
240A20 | 19.1774" | 20 | 1.6945" | 1.5" to 15.911" | #240 | 20.741" | 20.741" | Steel | €1,778.18 | |
 |
240A30 | 28.7003" | 30 | 1.6945" | 1.5" to 25.513" | #240 | 30.343" | 30.343" | Steel | €3,244.36 |
