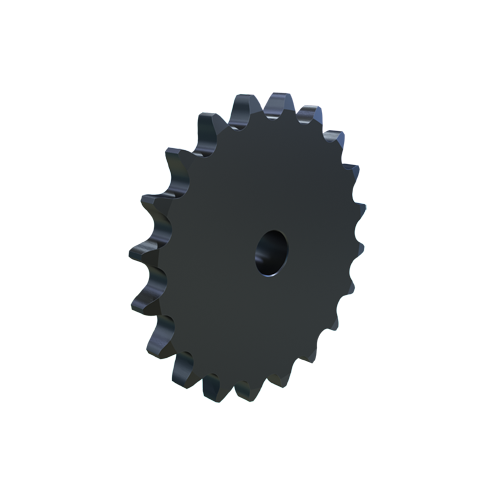

MARTIN SPROCKET 20B20 Sprocket, 20B-1 Chain, 20 Teeth, 202.960 mm Pitch Dia., 223.598 mm O.D., Steel
223.598 mm
Get it by Friday, Aug 21
€451.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 32 mm to 80 mm |
| Chain Size | #20B-1 |
| Hub Dia. | 113.995 mm |
| Length Through Bore | 51 mm |
| Material | Steel |
| No. Of Teeth | 20 |
| Outside Dia. | 223.598 mm |
| Pitch | 31.75 mm |
| Pitch Dia. | 202.96 mm |
| Type | Type B Single Strand Stock Bore Welded |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 22.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Material | Pitch | Chain Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20B12 | 122.673 mm | 12 | 48 mm | 89.992 mm | 25 mm to 63 mm | Steel | 31.75 mm | #20B-1 | €287.92 | |
 |
20B13 | 132.67 mm | 13 | 41 mm | 98.044 mm | 25 mm to 69 mm | Steel | 31.75 mm | #20B-1 | €309.77 | |
 |
20B16 | 162.745 mm | 16 | 44 mm | 113.894 mm | 25 mm to 80 mm | Steel | 31.75 mm | #20B-1 | €416.32 | |
 |
20B19 | 192.898 mm | 19 | 51.003 mm | 113.995 mm | 32 mm | Steel | 31.75 mm | #20B-1 | €426.35 | |
 |
20B22 | 223.097 mm | 22 | 51 mm | 113.995 mm | 32 mm to 80 mm | Steel | 31.75 mm | #20B-1 | €488.16 | |
 |
20B10 | 102.745 mm | 10 | 48 mm | 68.986 mm | 25 mm to 48 mm | Steel | 31.75 mm | #20B-1 | €229.55 | |
 |
20B8 | 82.967 mm | 8 | 48 mm | 48.006 mm | 25 mm to 34 mm | Steel | 31.75 mm | #20B-1 | €154.54 |
